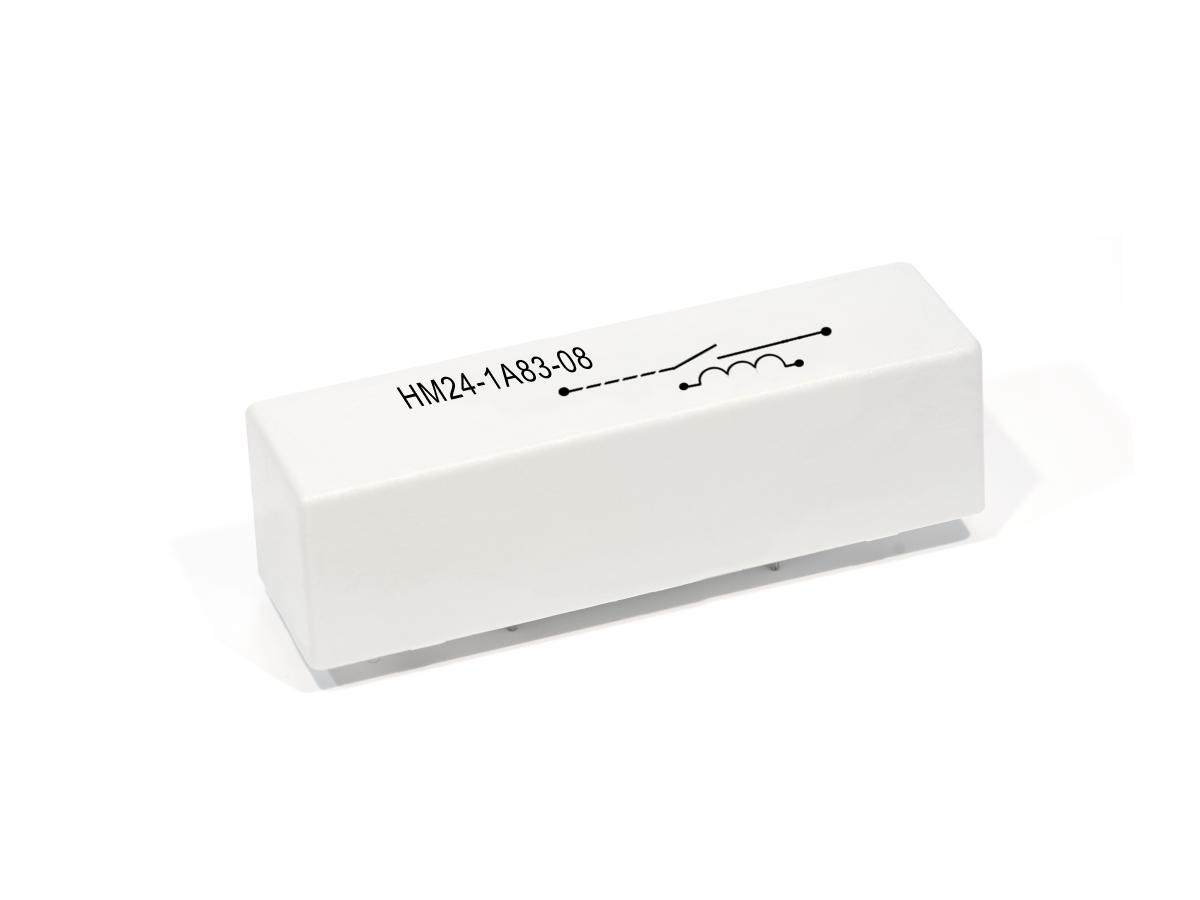

HM Series Reed Relay
The HM Series is a high-voltage reed relay engineered for precision switching in extreme isolation environments. Capable of switching up to 10,000 VDC and withstanding breakdown voltages up to 15,000 VDC, the HM Series is ideal for applications requiring robust dielectric strength and minimal leakage, such as medical equipment, cable testing, and automated test systems.
Encapsulated in epoxy for durability and available in multiple PCB pin configurations, the HM Series offers flexible mounting options including through-hole and axial lead formats. It supports SPST-NO (Form A), SPST-NC (Form B), and latching (Form E) contact forms, with coil voltages of 5 VDC, 12 VDC, and 24 VDC. Rated for up to 50 W and 3 A, the HM Series also features leakage distances greater than 32 mm, making it a reliable replacement for mercury wetted relays in high-voltage applications.
Standards and Certifications
- High-voltage switching up to 10,000 VDC; breakdown voltage up to 15,000 VDC
- SPST-NO, SPST-NC, and latching contact configurations
- Rated for 50 W and 3 A for high-power applications
- Coil voltage options: 5 VDC, 12 VDC, 24 VDC

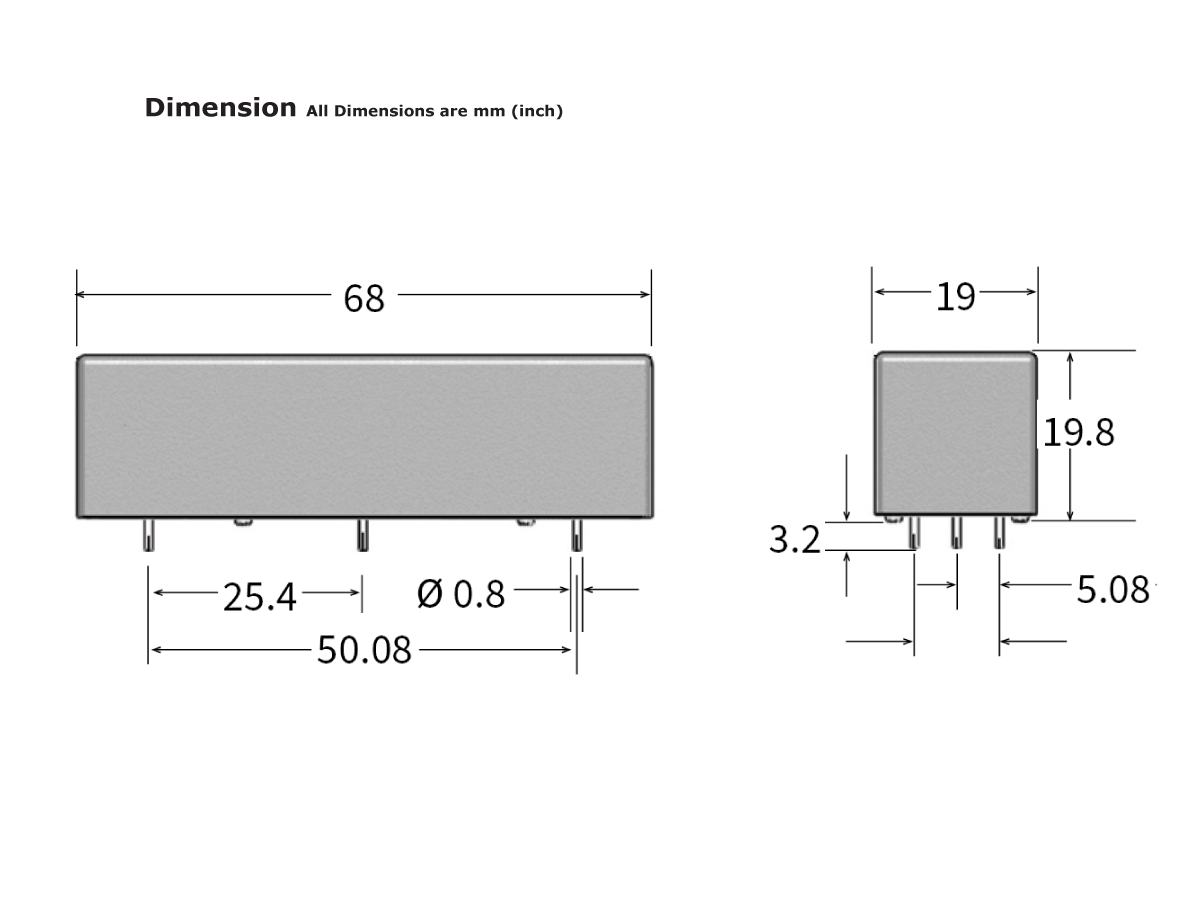

- Epoxy encapsulated with multiple PCB pin layouts
- Optional high-voltage wire leads for direct wiring
- Leakage distance >32 mm for enhanced isolation
- Through-hole and axial mounting options
- Ideal replacement for mercury wetted relays
| Coil Voltage (VDC) | 5, 12, 24 |
| Coil Resistance (Ω) | 10-1650 |
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1E Latching/Bistable |
| Rated Power Max. | 50W/10000VDC/3A |
- Medical Equipment: Defibrillators, electrosurgical generators, and high-voltage isolation
- Cable Testing Systems: Reliable switching for insulation and breakdown testing
- Test & Measurement (ATE): High-voltage switching in automated test environments
- Industrial Controls: High-voltage relay control in power and energy systems
- High-Voltage Research: Precision switching in lab and experimental setups
