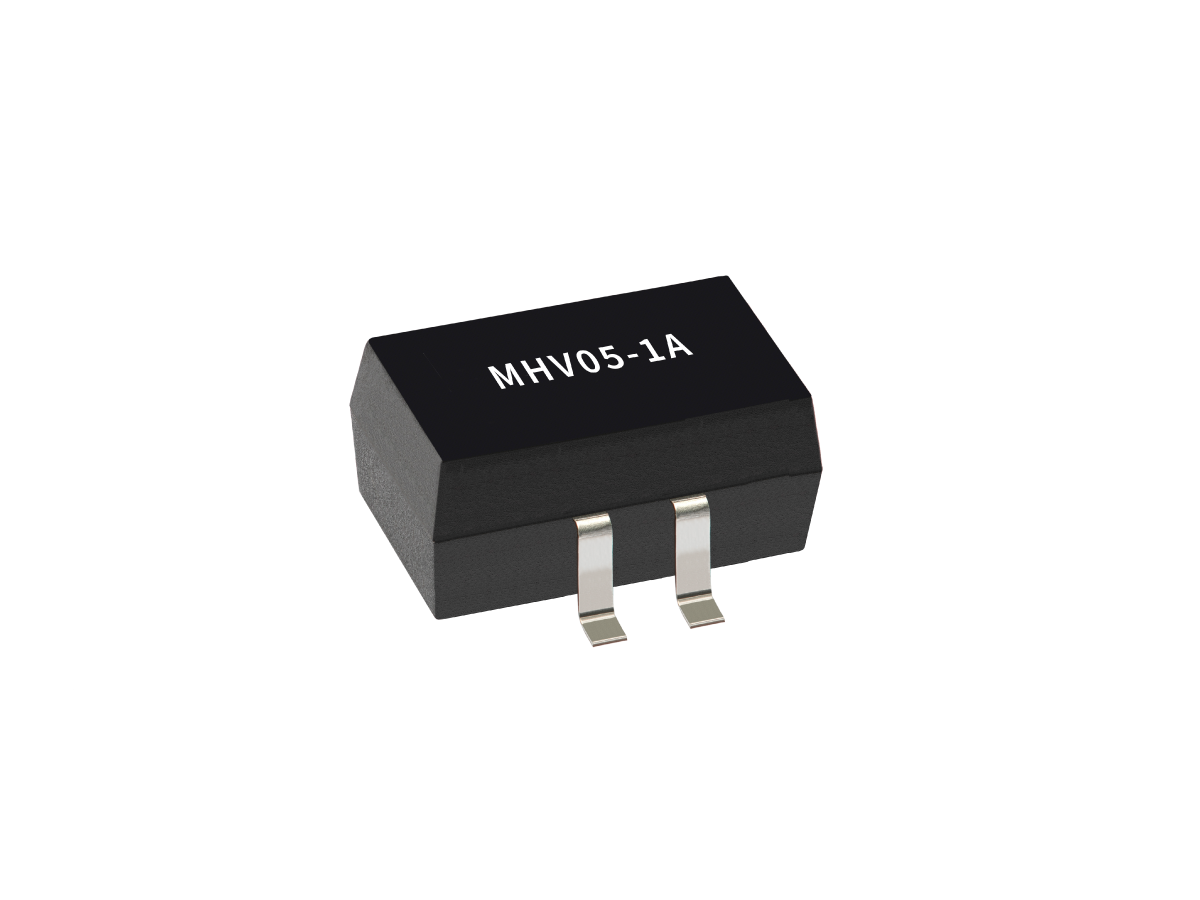

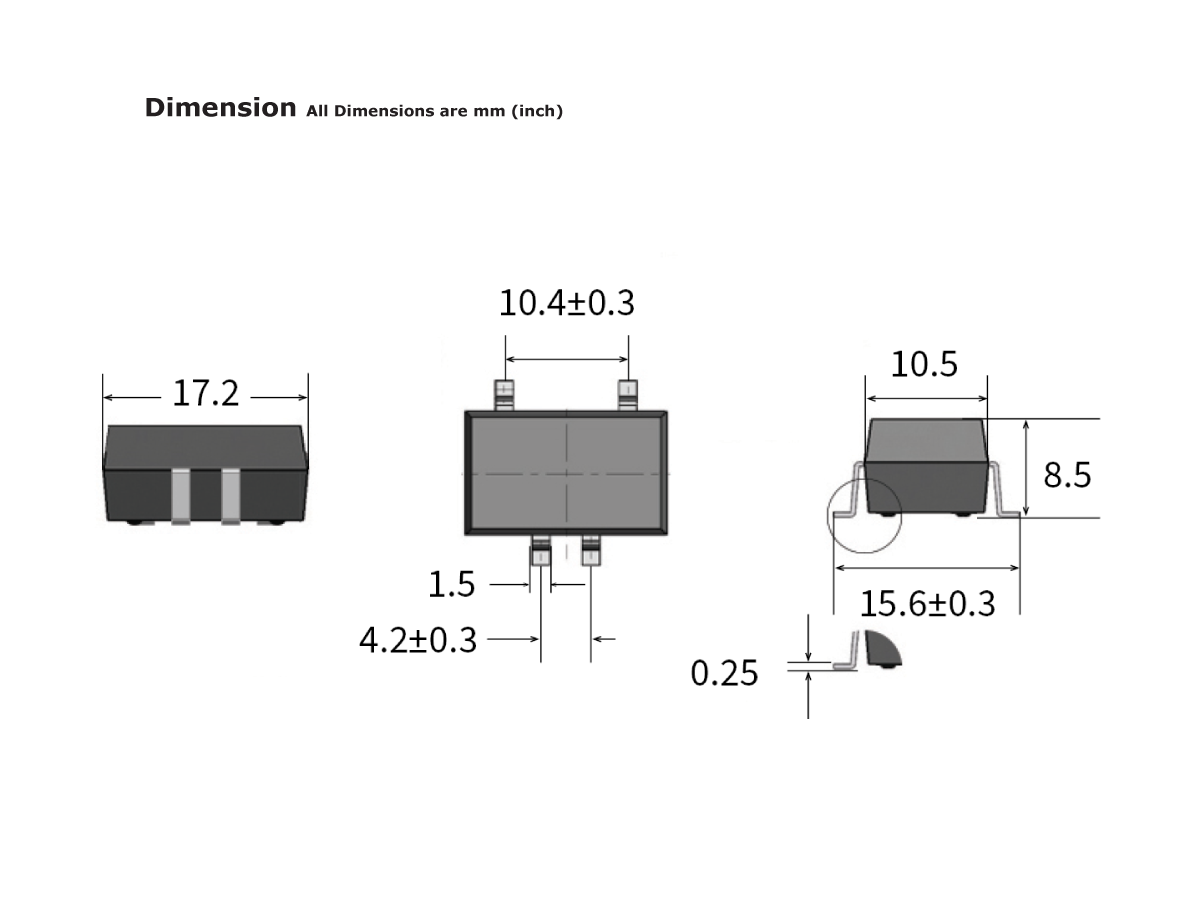

MHV Series Reed Relay
The MHV Series is a miniature high-voltage reed relay designed for compact applications requiring reliable switching and elevated isolation. Engineered to meet international safety standards, including IEC 60664-1, ISO 6469-3, IEC 60601-1, and IEC 62109-1/2, the MHV Series combines low leakage performance with robust dielectric strength in a surface-mount (SMD) package.
Capable of switching up to 1,000 VDC, with breakdown voltages up to 3 kVDC and isolation voltages of at least 5 kVDC, the MHV Series supports SPST-NO (Form A) contact configurations and a 5 VDC coil voltage. Rated for up to 10 W and 0.75 A, it features no internal solder joints and is fully compatible with reflow soldering processes. Tested to AEC-Q200 standards and compliant with UL, RoHS, and REACH, the MHV Series is ideal for automotive, medical, and energy applications.
Standards and Certifications
- High-voltage switching up to 1,000 VDC
- Breakdown voltage up to 3 kVDC; isolation voltage ≥ 5 kVDC
- High insulation resistance for low leakage current
- SPST-NO (Form A) contact configuration
- Rated for 10 W and 0.75 A
- Coil voltage: 5 VDC
- Surface-mount (SMD) design with no internal solder joints
- Reflow soldering compatible
- Meets IEC, ISO, and AEC-Q200 standards
- UL approved; RoHS and REACH compliant
| Coil Voltage (VDC) | 5 |
| Coil Resistance (Ω) | 140 |
| Contact Form | 1A (SPST) |
| Rated Power Max. | 10W/1000VDC/0.75A |
| Breakdown Voltage | up to 3 kVDC |
| Isolation Voltage | min. 5 kVDC |
- Automotive Systems: Isolation measurement in battery management systems (BMS)
- Photovoltaics: High-voltage switching in solar energy systems
- Medical Equipment: Isolation in diagnostic and therapeutic devices
- Test & Measurement: Reliable switching in compact electronic test platforms
- General Purpose Electronics: High-voltage relay control in space-constrained designs
