SHV-2A Series Reed Relay
The SHV-2A Series is a high-voltage dual contact (Form 2A), single-in-line (SIL) reed relay engineered for ATE in compact footprint for high density, multi-channel matrices. Designed to switch up to 1,000 VDC with a breakdown voltage of up to 2,000 VDC, or 3,000 VDC on demand, the SHV-2A Series delivers high voltage performance, superior insulation, and excellent signal fidelity in demanding applications such as automated test equipment (ATE), EV / ESS, medical test systems, and power electronics.

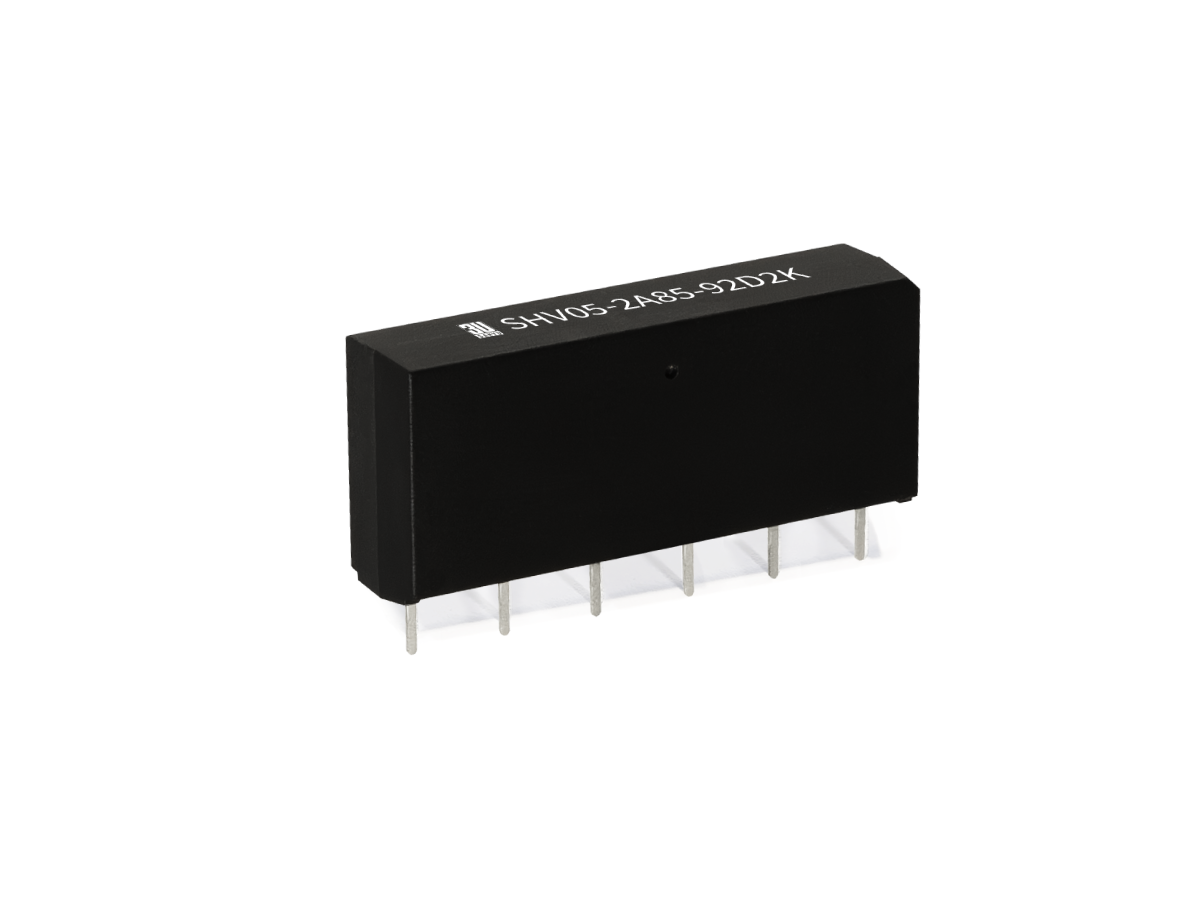

Encased in a molded housing, the SHV-2A Series offers ultra-high insulation resistance (IR > 10TΩ) to preserve measurement integrity and safety. The unique compact form factor with dual HV contacts, makes it ideal for space-constrained designs. Available in DPST-NO (2 Form A) contact configuration, with coil voltages of 5 VDC and optional diode for enhanced performance.
- High-voltage switching up to 1,000 VDC
- Breakdown voltage up to 3,000 VDC
- Ultra-high insulation resistance (>10 TΩ)
- Compact SIL molded housing with dual HV contacts
- Contact configuration: DPST-NO (2 Form A)
- Coil voltage options: 5 VDC
- Rated power: Up to 100 W

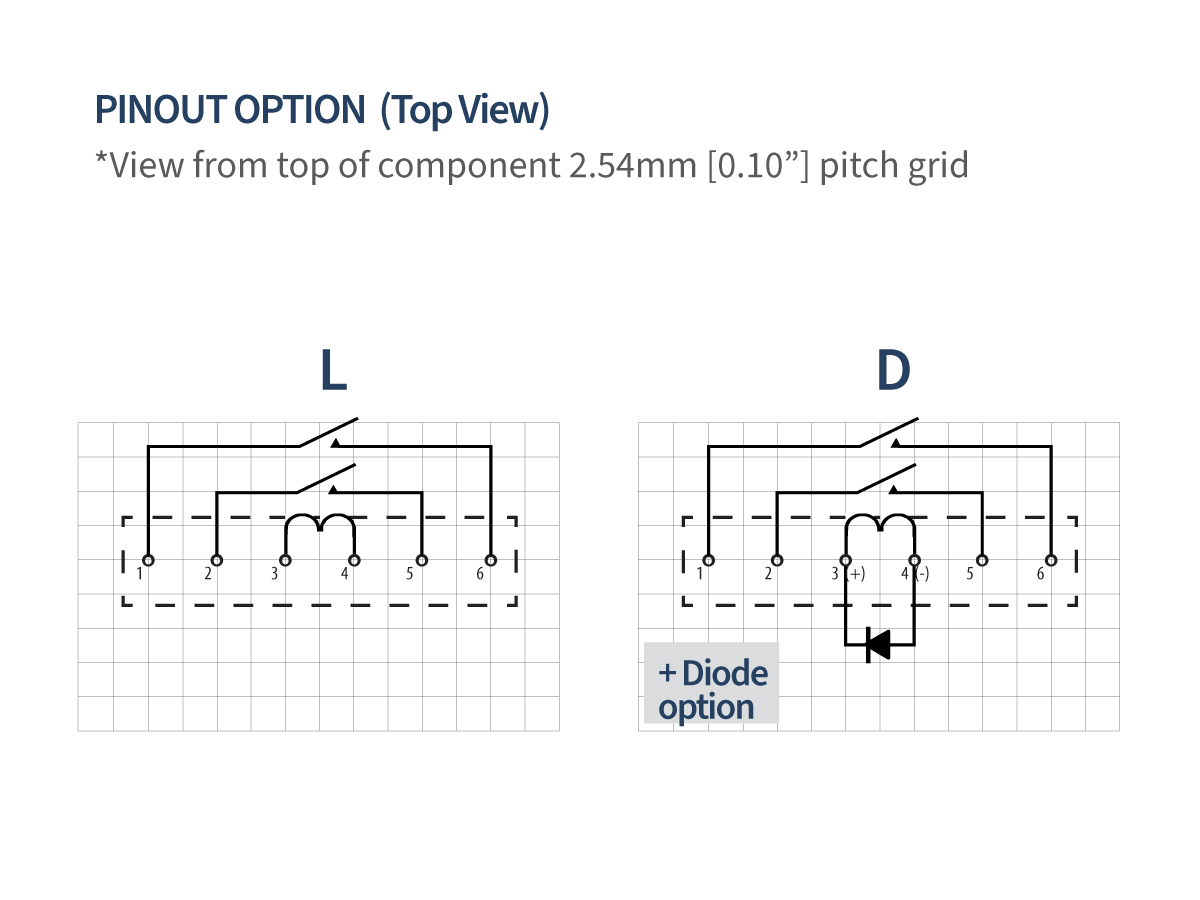

- Optional diode protection for coil suppression
- Through-hole (THT) mounting
- Qualified in accordance with IEC 61810
| Coil Voltage (VDC) | 05 |
| Coil Resistance (Ω) | 225 |
| Contact Form | 2A |
| Rated Power Max. | 100W/1,000VDC/1A |
- Automated Test Equipment (ATE): High-density relay arrays for precision high-voltage measurement and signal routing
- High-Voltage Cable and Harness Testing: Matrix switching for insulation and continuity testing in EV, aerospace, and industrial systems
- Semiconductor Test Systems: Parametric and mixed-signal testing requiring low leakage and low capacitance switching paths
- Functional PCB Testing: Compact switching of high-voltage and sensitive measurement nodes in mixed-signal environments
- Battery and Energy Storage Testing: High-voltage routing and insulation measurement in battery modules and pack
