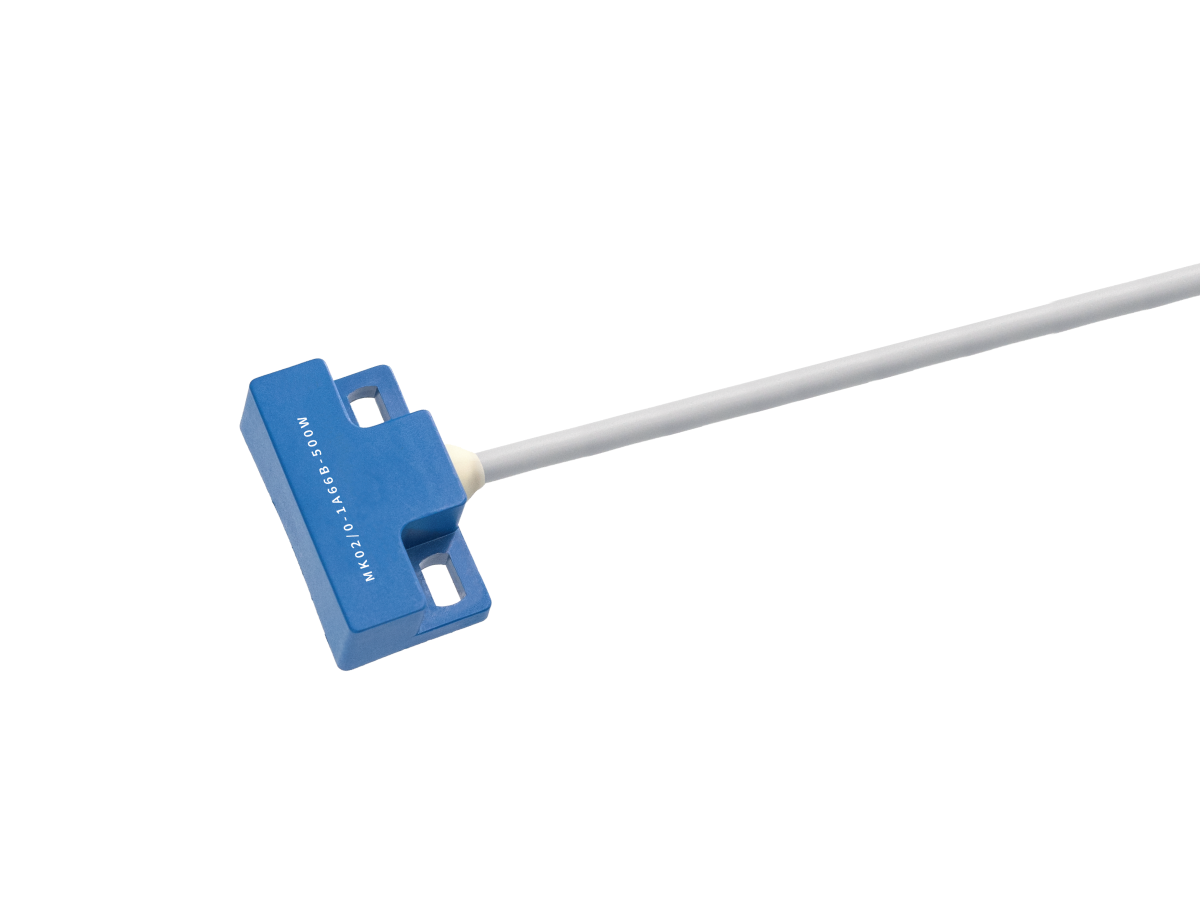

MK02 Series Reed Sensor
The MK02 Series Reed Sensor is a robust solution for ferrous metal detection, proximity sensing, and position monitoring in industrial and security applications. Housed in a screw-fastened flange-mount rectangular casing with cable terminals, it offers reliable performance in harsh environments and is UL approved with an IP67 rating for dust and water resistance.
Standards and Certifications
- High reliability and long operational life
- Compact design for space-constrained installations
- Multiple configurations to suit diverse application needs
- Wide Operating Range: Detects targets from 4.5 mm to 15 mm, depending on model
- Mounting Style: Screw flange for robust attachment
- Ingress Protection: IP67 rated for harsh environments
- Certifications: UL Approved
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 4.5-15 MM |
| Rated Power Max. | 10W/200VDC/0.5A |
- Industrial automation
- Security systems
- Metal detection
- Position sensing in rugged environments
