MK14 Series Reed Sensor

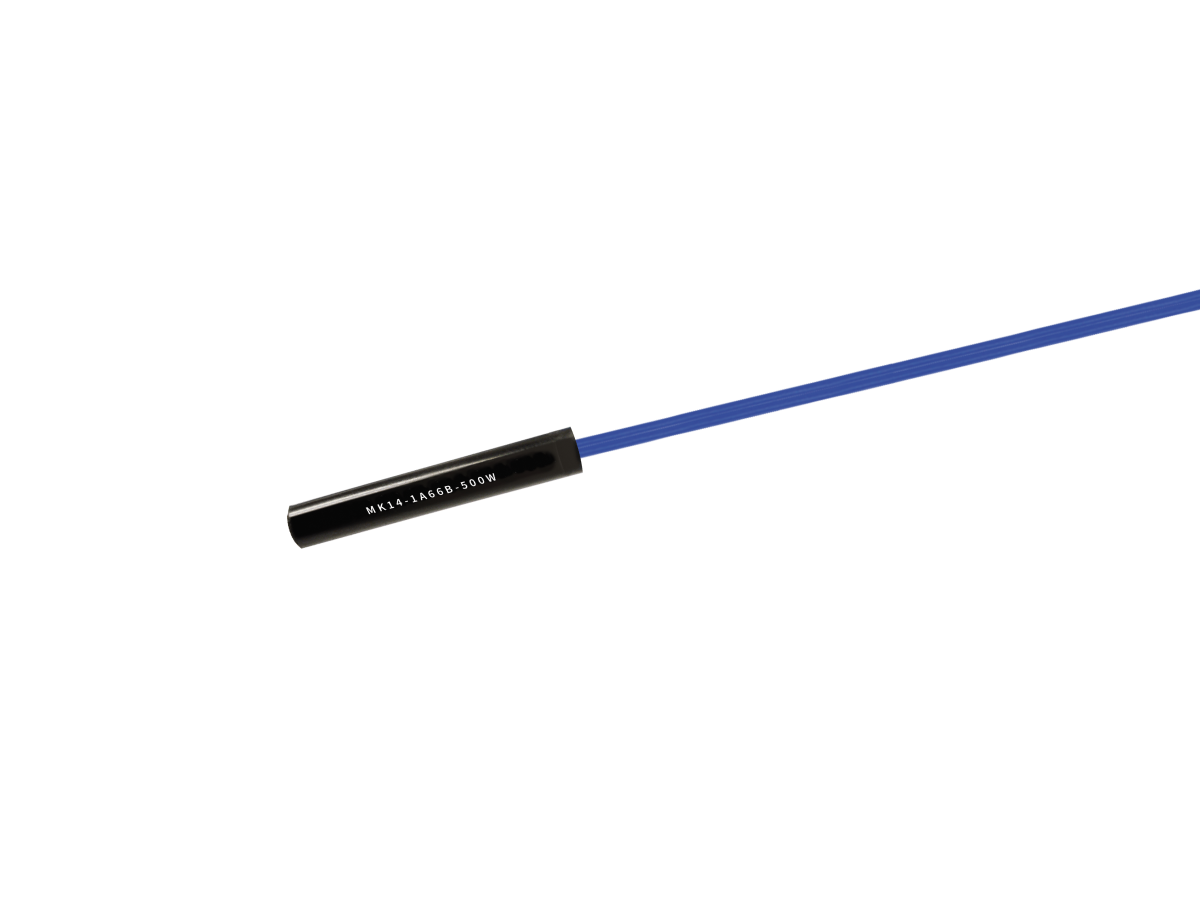

The MK14 Series is a compact, panel-mount reed sensor housed in a 4.0mm diameter cylindrical body, designed for reliable magnetic sensing in industrial, security, and appliance applications. Its round cable terminal design and wide range of internal switch options make it a flexible solution for OEMs seeking dependable performance in space-constrained environments.
The MK14 Series offers compact sensing performance with broad configuration flexibility, making it a reliable choice for engineers designing in tight spaces or regulated environments
Standards and Certifications

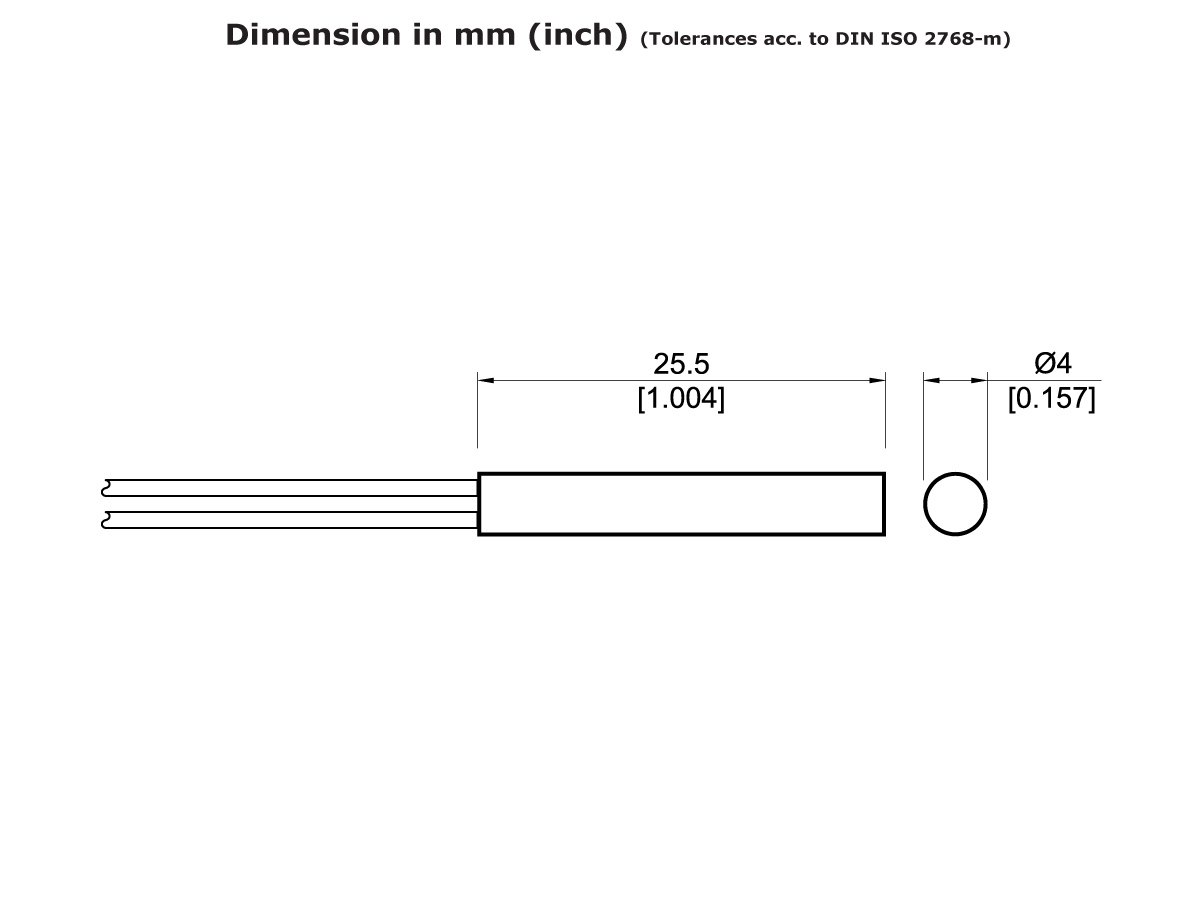

- Cylindrical 4.0mm housing for panel mounting
- Cable terminal design with round wire leads
- Multiple cable lengths and magnetic sensitivities available
- UL-approved configurations
- Customizable switch type, cable length, and termination
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/400VDC/0.5A |
- Door and window monitoring
- Water level detection (with magnetic floats)
- Position and proximity sensing
- White goods and household appliances
- Industrial automation
- Security systems
