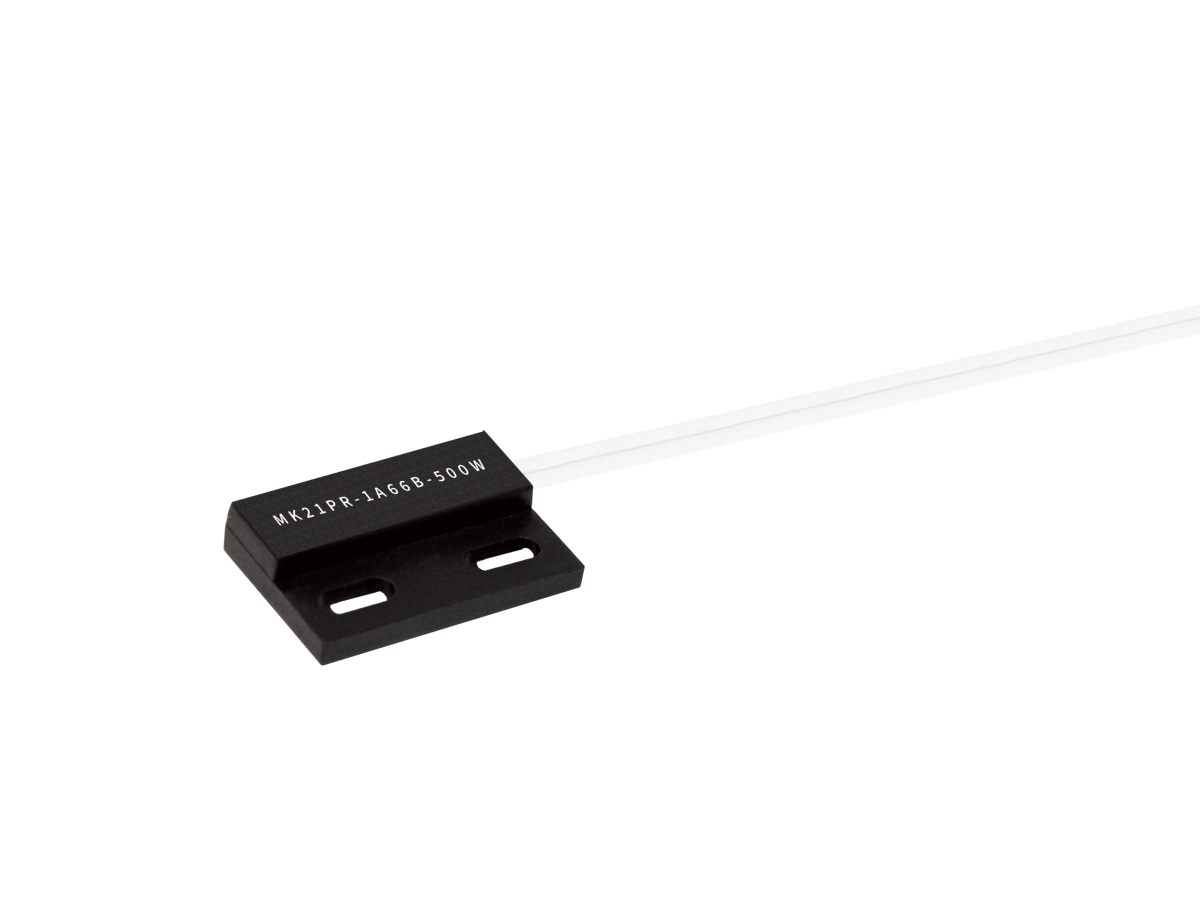

MK21PR Series Reed Sensor
The MK21PR Series is a compact, flange-mount reed sensor designed with a right-side cable exit, making it ideal for applications where space constraints prevent the use of standard left-exit configurations. Built on the proven MK21 platform, this variant offers the same rugged performance with a modified cable orientation to support tighter installations.
The MK21PR Series delivers reliable magnetic sensing in a compact, right-exit configuration, making it a trusted solution for OEMs and engineers working in space-constrained or directional cable routing environments.
Standards and Certifications
- Right-side cable exit for space-sensitive designs

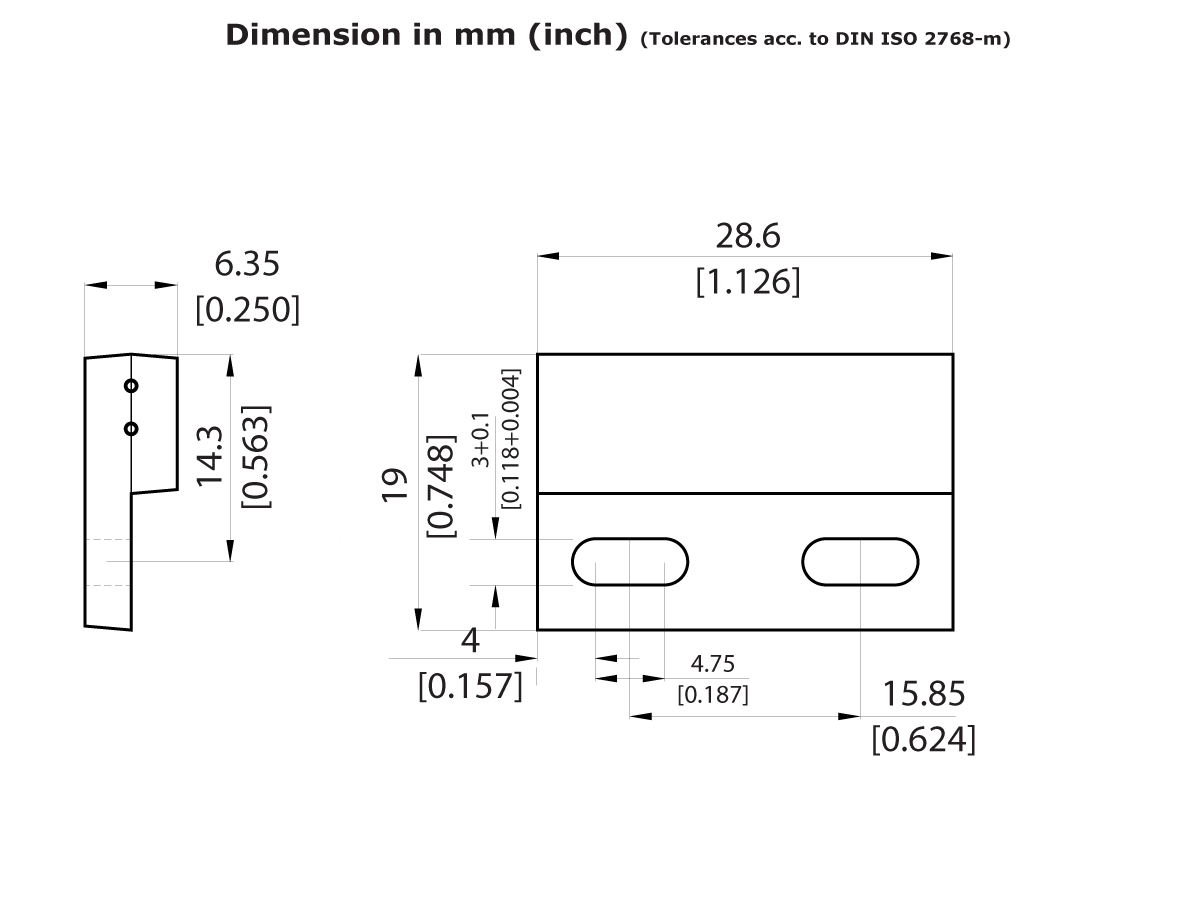

- Rectangular flange-mount housing with flat PVC wire leads
- Multiple cable lengths and termination options available
- UL-approved and IP67-rated for durability
- Customizable switch configurations to match application needs
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/500VDC/0.5A |
- Automotive systems
- Industrial automation
- Security and access control
- White goods and appliances
- Position, level, and end-limit sensing
