MK26 Series Reed Sensor

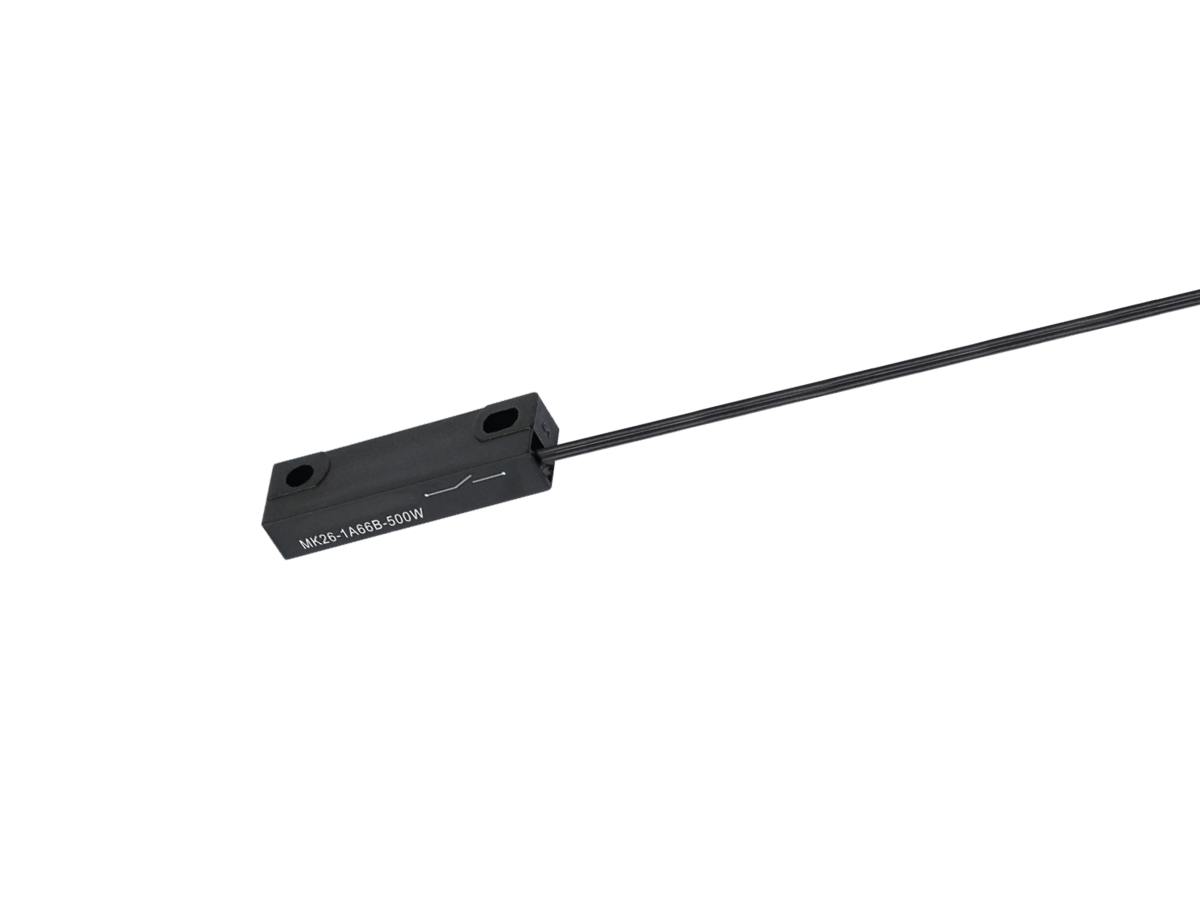

The MK26 Series is a rugged, flange-mount reed sensor designed for high-voltage switching applications in industrial, security, and appliance environments. Housed in a rectangular body with screw-fastened mounting and cable terminals, it offers reliable magnetic sensing for position, proximity, motion, level, and end-limit detection.
The MK26 Series delivers compact, high-power magnetic sensing in a durable flange-mount design, making it a trusted solution for OEMs and engineers working in demanding electrical and mechanical environments.
Standards and Certifications
- High-voltage capability up to 1000VDC

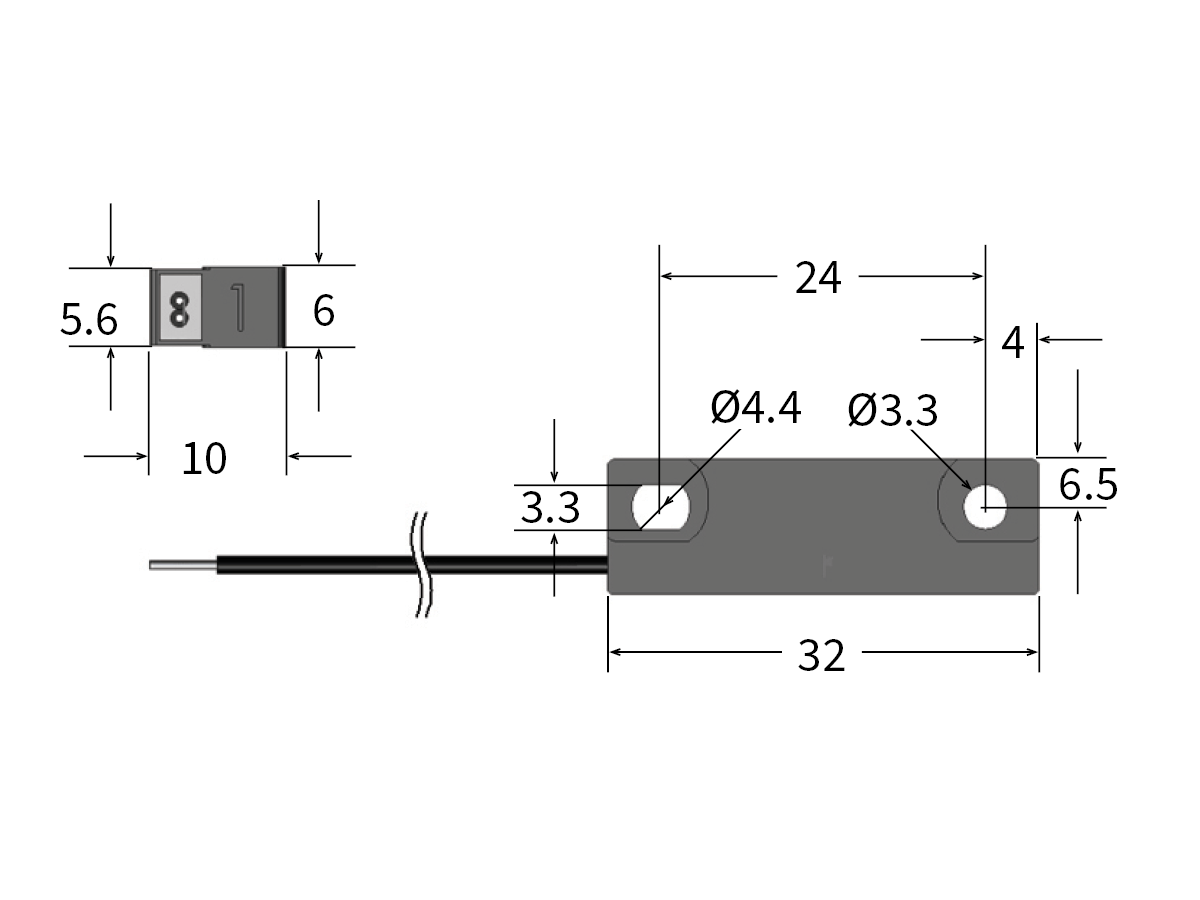

- Screw flange mount for secure installation
- Rectangular housing with round wire leads
- Customizable switch type, cable length, and termination
- UL-approved and IP67-rated for harsh environments
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 100W/1000VDC/1A |
- High-voltage switching
- Hydraulic actuator position indication
- Industrial automation
- Security systems
- White goods and appliances
- Liquid level sensing (with magnetic floats)
