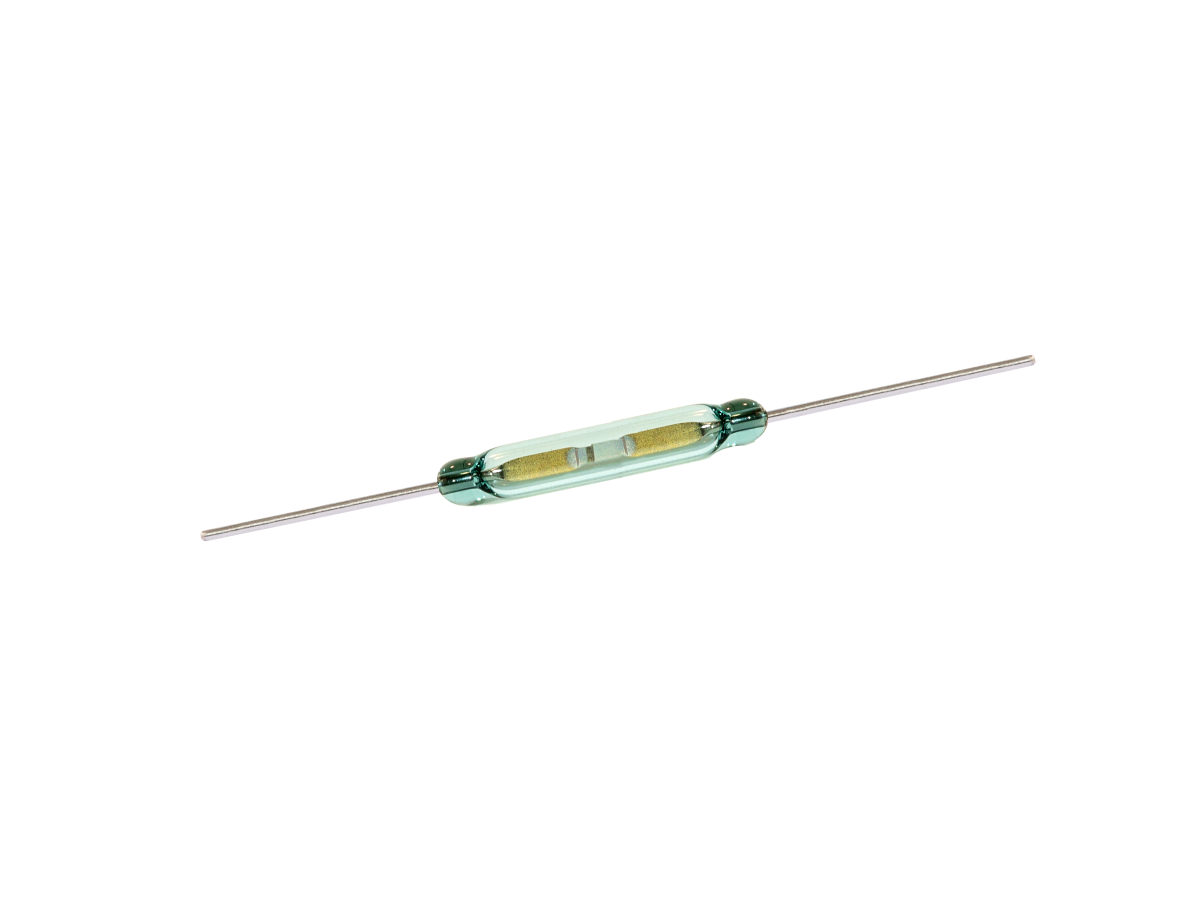

ORD2211 Series Reed Switch
The ORD2211 Series is a high-power, general-purpose reed switch designed for reliable switching in industrial, test, and measurement applications. With a glass body length of 16.5 mm and diameter of 2.8 mm, this SPST-NO (Form A) switch supports switching voltages up to 100 VDC, currents up to 0.5 A, and a rated power of 50 W.
Its hermetically sealed contacts ensure long-term durability and stable performance in harsh environments. The ORD2211 is available in a wide range of operate sensitivities (15–55 AT), making it a versatile solution for various magnetic actuation requirements.
Standards and Certifications
- High-power switching capability for demanding electrical loads
- Hermetically sealed glass body protects against moisture and contaminants
- Flat lead configuration supports secure mounting and automated assembly
- Fast switching response for precise control and timing
- Wide operate range options for flexible magnetic sensitivity tuning
- Reliable performance in industrial and test environments

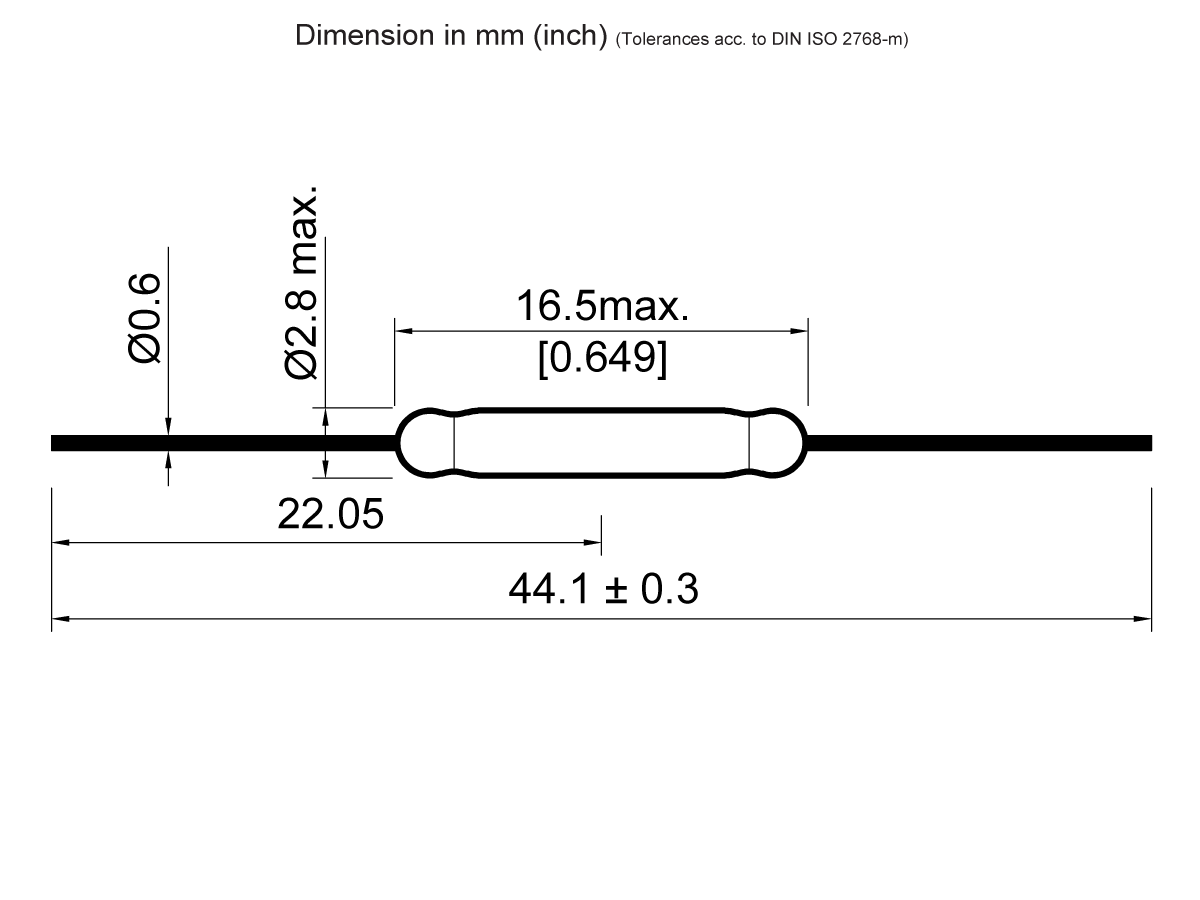

| Overall Length mm (inches) | 44.1 (1.736) |
| Glass Length Max. mm (inches) | 16.5 (0.649) |
| Glass Dia. Max. mm (inches) | 2.80 (0.110) |
| Lead Dia. mm (inches) | 0.6 (0.023) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 20-40 AT |
| Rated Power Max. | 50W/100VDC/0.5 Amp DC |
- General-purpose switching in industrial systems
- Test and measurement equipment (ATE)
- Relay and solenoid control circuits
- Security and alarm systems
- Power monitoring and metering devices
- Automotive sensors and controls
