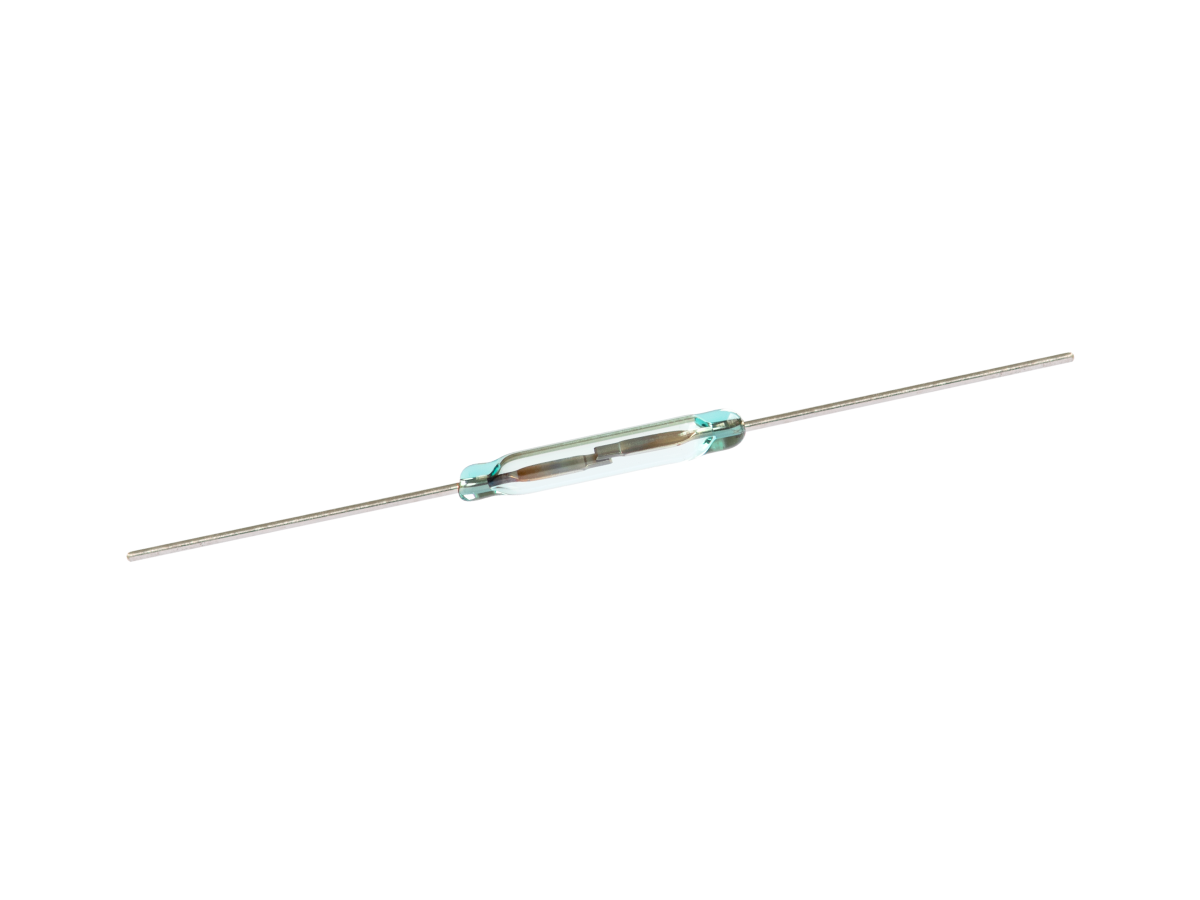

ORD324 Series Reed Switch
The ORD324 Series is a miniature SPST-NO (Form A) reed switch designed for general-purpose switching in medium-load applications. With a glass body length of 14.0 mm and a diameter of 2.2 mm, it supports switching voltages up to 200 VDC and currents up to 0.5 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD324 ensures long-term contact reliability and consistent performance. Its compact form factor and robust electrical ratings make it one of the most widely used switches in industrial, consumer, and automotive applications.
Standards and Certifications
- SPST-NO (Form A) contact configuration for simple on/off switching
- Compact 14.0 mm glass body for space-constrained designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 200 VDC, and 0.5 A switching current for medium-load applications
- Straight lead configuration for easy PCB mounting and mechanical stability

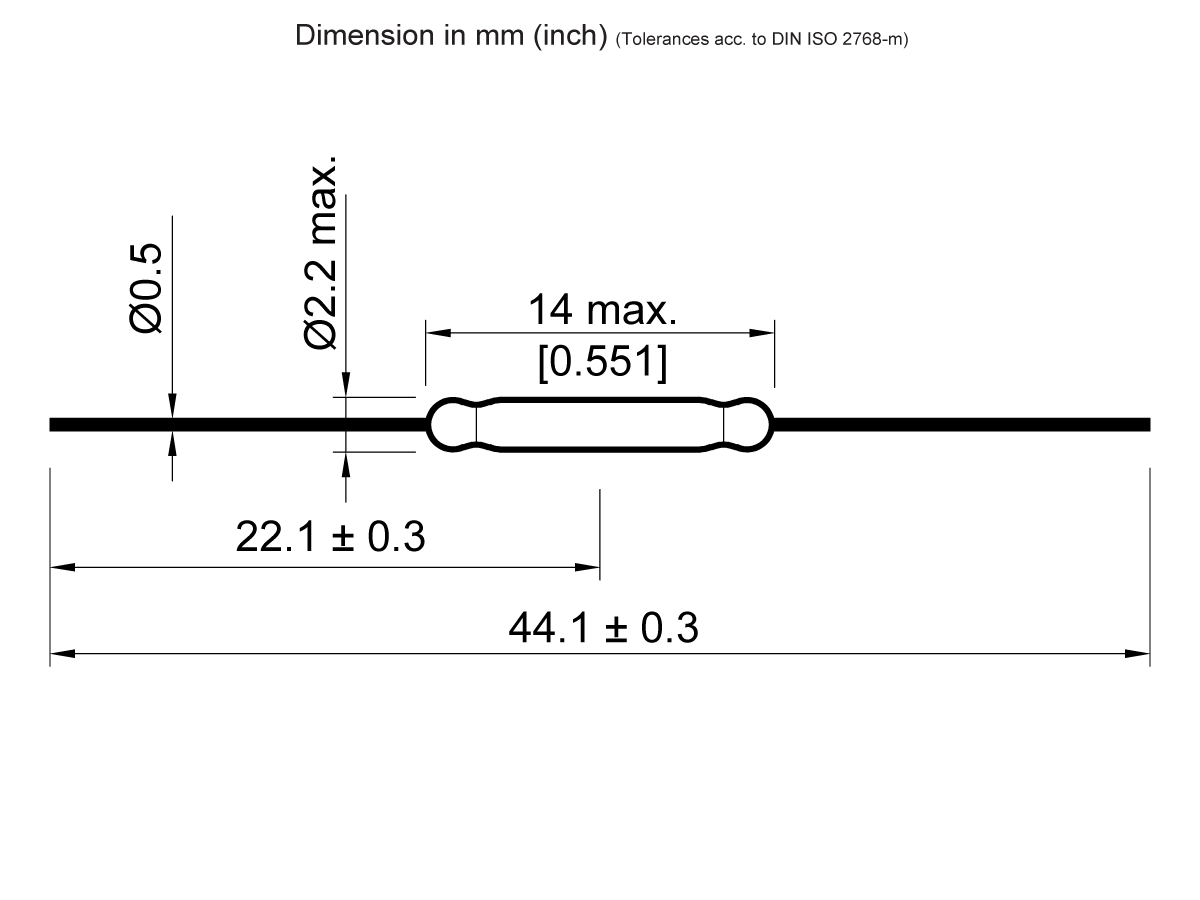

| Overall Length mm (inches) | 44.3 (1.744) |
| Glass Length Max. mm (inches) | 14.0 (0.551) |
| Glass Dia. Max. mm (inches) | 2.2 (0.086) |
| Lead Dia. mm (inches) | 0.5 (0.019) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 10-40 AT |
| Rated Power Max. | 10W/200VDC/0.5 Amp DC |
- Automotive Systems: Fluid level sensing, seatbelt latch detection
- Industrial Controls: Position sensing, relay logic, fault detection
- Consumer Electronics: Magnetic lid detection, proximity sensing
- Medical Devices: Compact switching in diagnostic and monitoring equipment
- Smart Appliances: Door interlock sensing, water level control
- Security Systems: Window/door sensors, tamper detection
