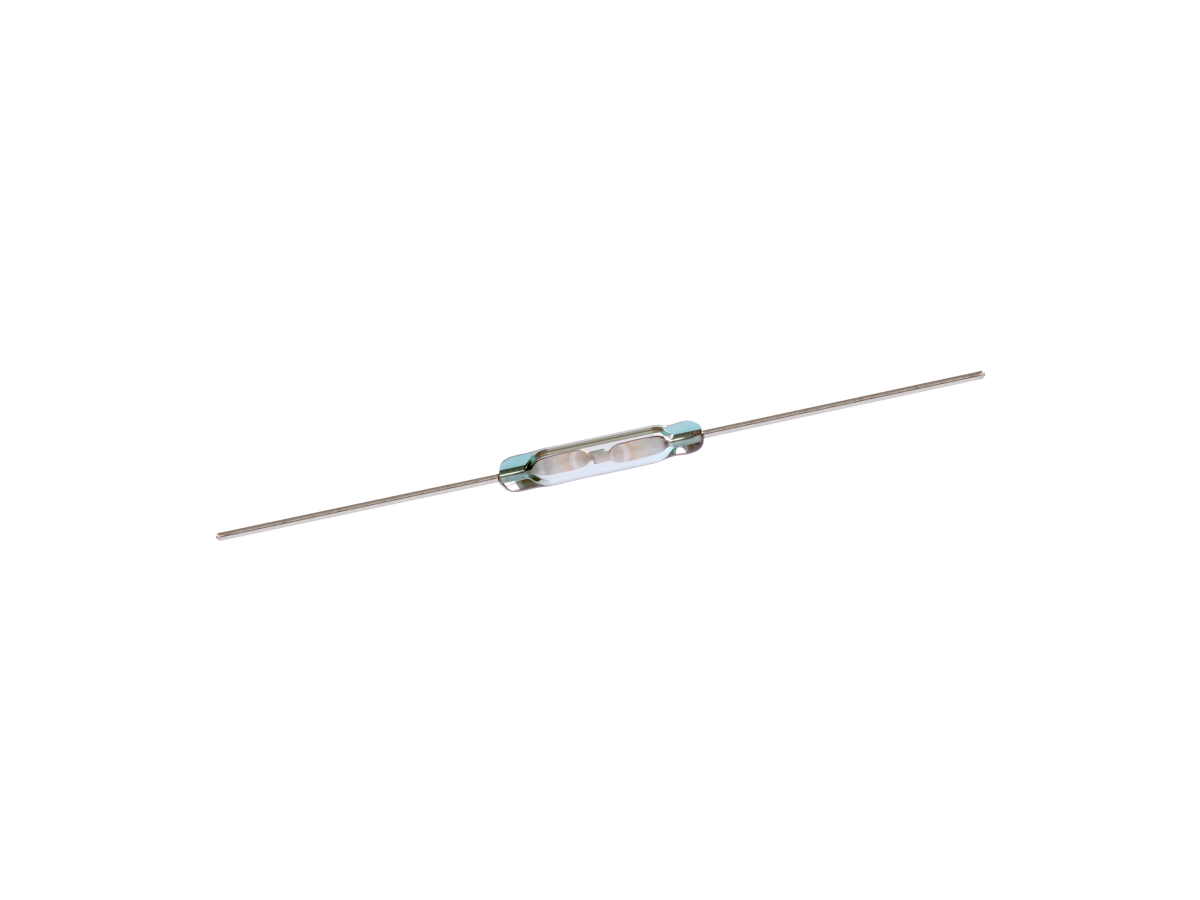

ORD611 Series Reed Switch
The ORD611 Series is an ultra-miniature reed switch designed for precision magnetic sensing in space-The ORD611 Series is a miniature SPST-NO (Form A) reed switch designed for reliable switching of medium-level loads in compact electronic systems. With a glass body length of 10.0 mm and a diameter of 2.0 mm, it supports switching voltages up to 200 VDC and currents up to 0.3 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD611 ensures long-term contact reliability and consistent performance. Its compact form factor and wide sensitivity range (8–40 AT) make it ideal for use in automotive, appliance, control, and instrumentation applications.
Standards and Certifications
- SPST-NO (Form A) contact configuration for straightforward on/off switching
- Compact 10.0 mm glass body with 2.0 mm diameter for space-constrained designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 200 VDC, and 0.3 A switching current for medium-load applications
- Wide pull-in sensitivity range (8–40 AT) for flexible magnetic actuation

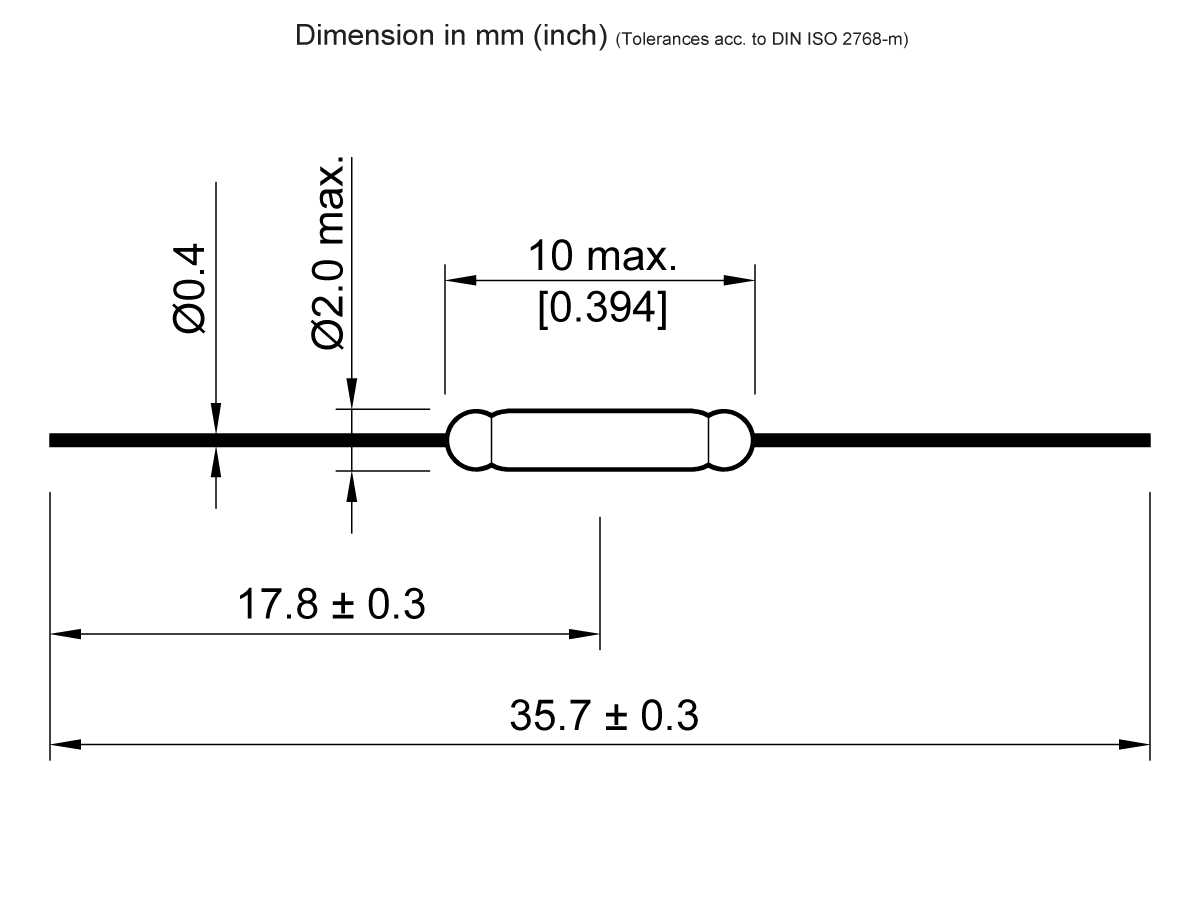

| Overall Length mm (inches) | 35.7 (1.405) |
| Glass Length Max. mm (inches) | 10.0 (0.393) |
| Glass Dia. Max. mm (inches) | 2.0 (0.078) |
| Lead Dia. mm (inches) | 0.4 (0.015) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 8-40 AT |
| Rated Power Max. | 10W/200VDC/0.3 Amp DC |
- Automotive Systems: Fluid level sensing, seatbelt latch detection
- Household Appliances: Door interlock sensing, water level control
- Control Equipment: Relay logic, fault detection
- Telecommunications: Line status detection, signal routing
- Instrumentation: Sensor triggering, position sensing
- Consumer Electronics: Magnetic lid detection, proximity sensing
