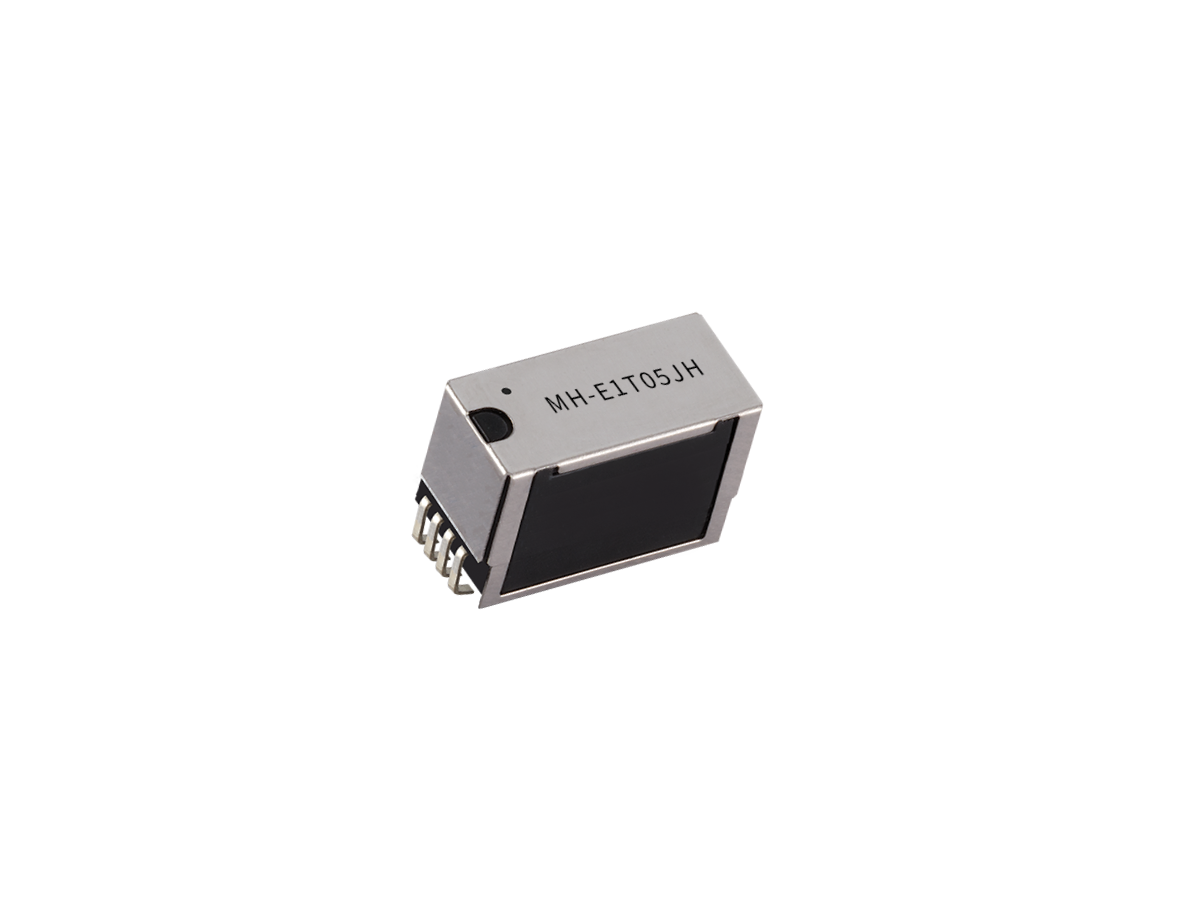

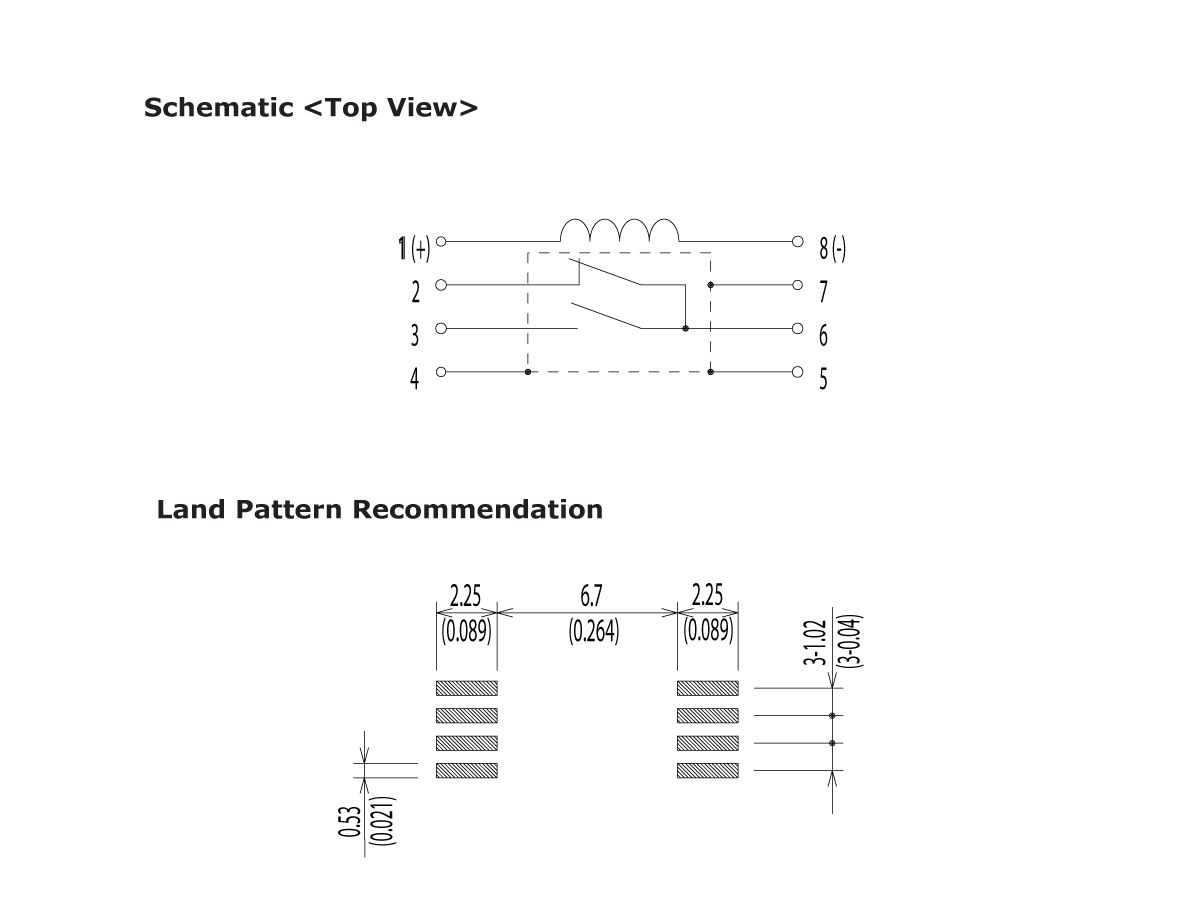

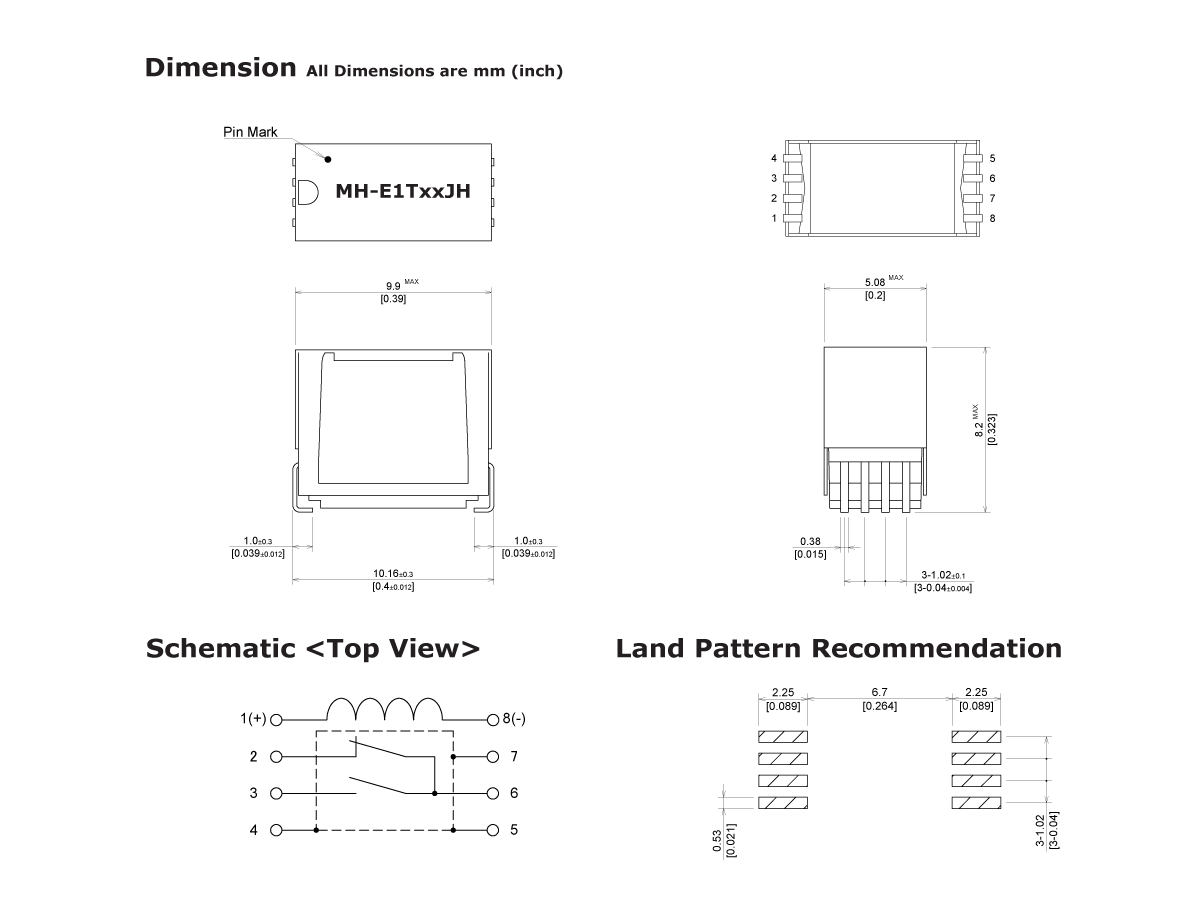

MH Series Reed Relay
The MH Series is a high-density reed relay engineered for precision switching in compact PCB layouts. Featuring a vertical form factor optimized for space efficiency, the MH Series enables dense relay arrays ideal for demanding applications such as automated test equipment (ATE), telecommunications, and medical diagnostics.
With a footprint designed for high-density mounting, the MH Series supports SPST-NO (Form A) contact configurations and is available in 5 VDC and 12 VDC coil voltage options. Rated for up to 5 W, 50 VDC, and 0.2 A, it ensures reliable performance in low-power switching environments. Through-hole vertical mounting provides secure integration, while optional diode protection and shielding enhance isolation and longevity.
Standards and Certifications
- High-density vertical form factor for compact PCB assembly
- SPST-NO (Form A) contact configuration
- Rated for 5 W, 50 VDC, and 0.2 A switching capacity
- Coil voltage options: 5 VDC and 12 VDC
- Through-hole (THT) vertical mounting for robust placement
- Optional diode protection for coil suppression
- Single/double shielding options for improved signal isolation
- Relay socket options for simplified maintenance and replacement
- Optimized for IC testing and automated test environments
| Coil Voltage (VDC) | 3.3, 5, 12 |
| Coil Resistance (Ω) Max. | 150 |
| Contact Form | 1T (changeover) |
| Rated Power Max. | 10W/100VDC/0.5A |
| Insertion Loss -3dB drop off point GHz | ~ 3 GHz |
| Life Expectancy (at 1V 10mA) | 300 Million Switching Cycles |
Automated test equipment, Functional PCB test systems, Data acquisition, telecommunications, ATE signal & PCB testers, High current/Voltage test, IC wafer testing, High density, High RF wireless and wireless communications markets.
