UMS Series Reed Relay

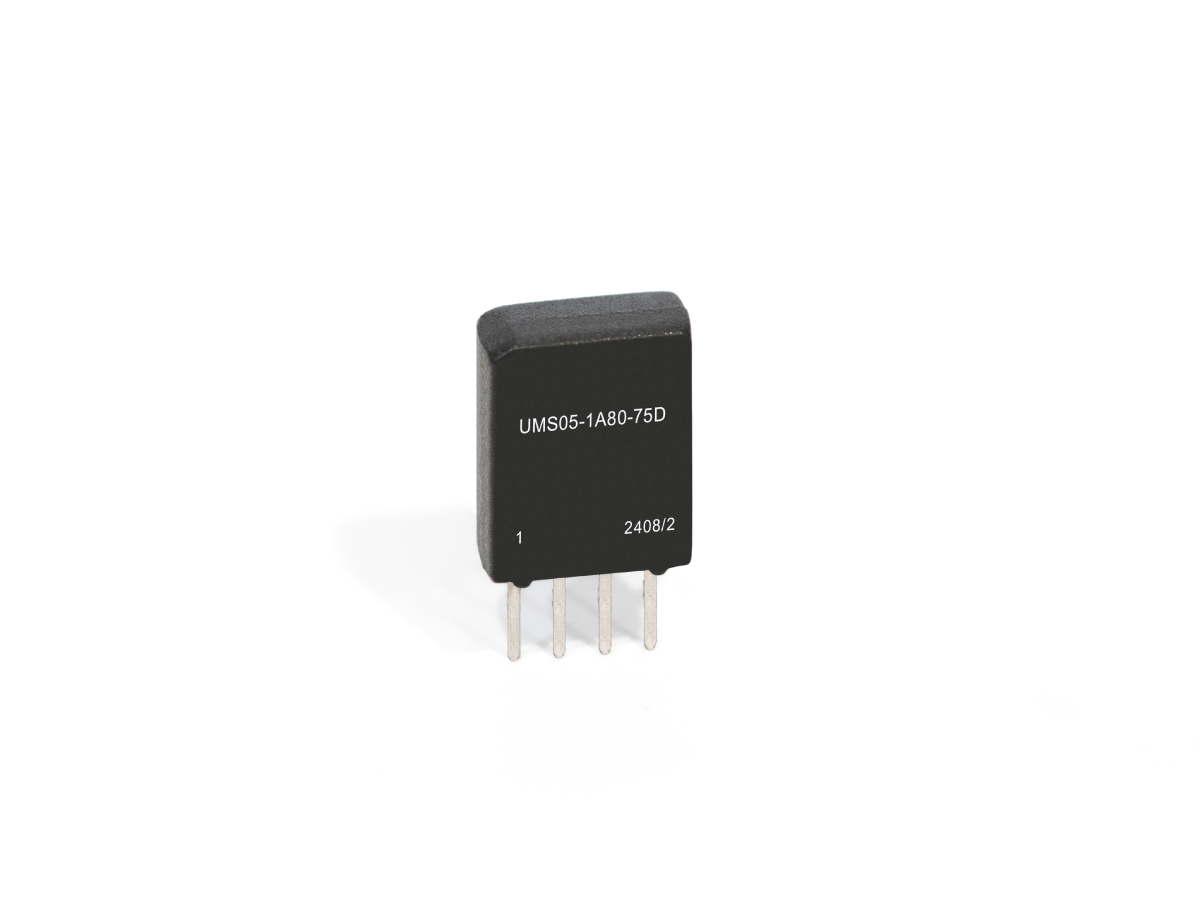

The UMS Series is an ultraminiature, instrumentation-grade reed relay designed for high-density PCB layouts and precision switching in compact electronic systems. Measuring nearly 50% smaller than the standard MS Series, the UMS Series is ideal for tightly stacked matrices in test and measurement, telecommunications, and security applications.

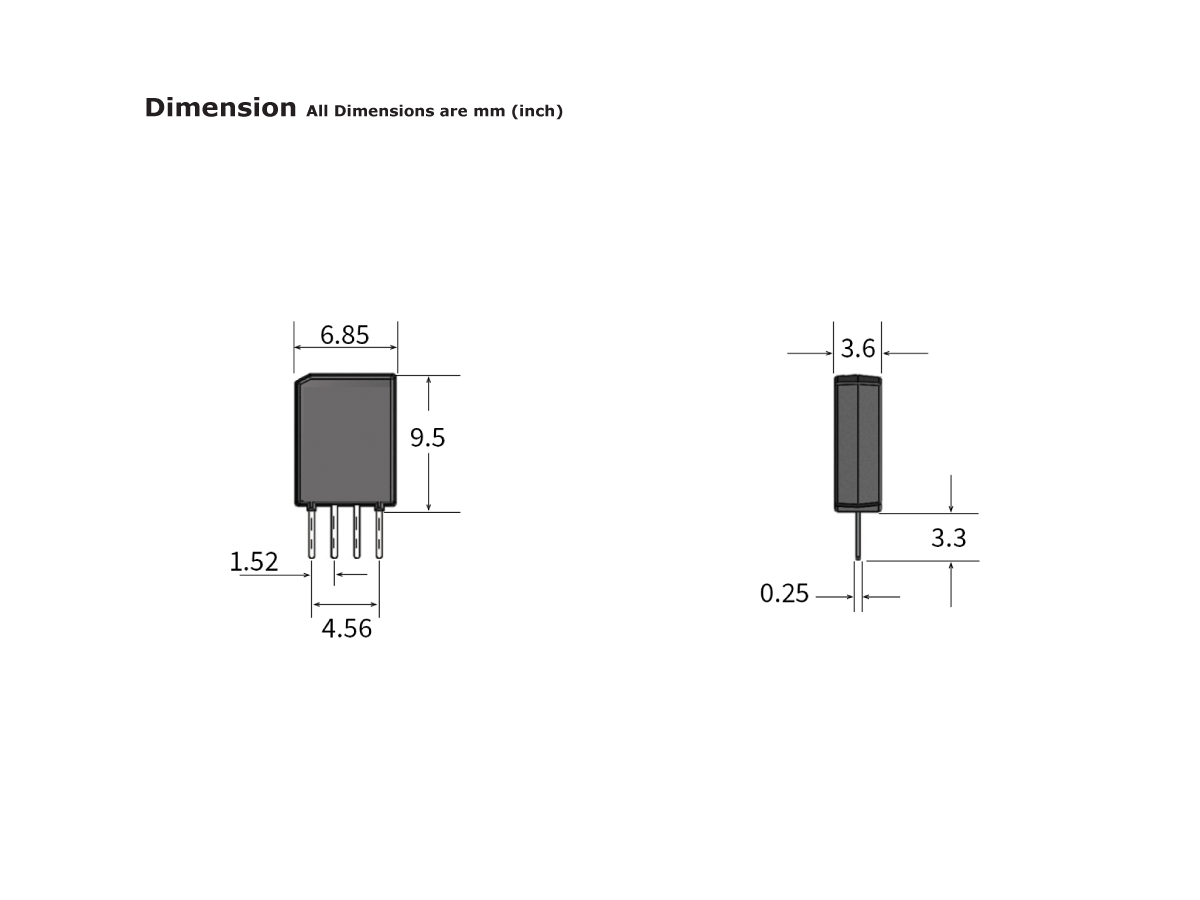

Encased in a micro single-in-line (SIL) package, the UMS Series features SPST-NO (Form 1A) contact configuration and supports coil voltages of 5 VDC with coil resistance ranging from 400 to 500 Ω. Rated for up to 10 W, 170 VDC, and 0.5 A, it includes an internal magnetic shield and optional diode protection for enhanced signal integrity and reliability. UL certification ensures compliance with global safety standards.
Standards and Certifications
- Ultraminiature SIL package—50% smaller than MS Series
- SPST-NO (Form 1A) contact configuration
- Rated for 10 W, 170 VDC, and 0.5 A switching capacity
- Coil voltage: 5 VDC
- Coil resistance: 400–500 Ω
- Internal magnetic shielding for signal isolation
- Optional diode protection for coil suppression
- UL Certificate of Compliance for safety assurance
- Through-hole (THT) mounting for secure PCB integration
- Optimized for high-density relay matrices
| Coil Voltage (VDC) | 5 |
| Coil Resistance (Ω) | 400-500 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 10W/170VDC/0.5A |
- Test & Measurement (ATE): Compact relay arrays for precision switching
- Telecommunications: Signal routing in miniaturized network modules
- Security Systems: Reliable switching in alarm and access control devices
- Industrial Electronics: Space-saving relay integration in embedded systems
- Medical Devices: Compact relay control in diagnostic equipment
