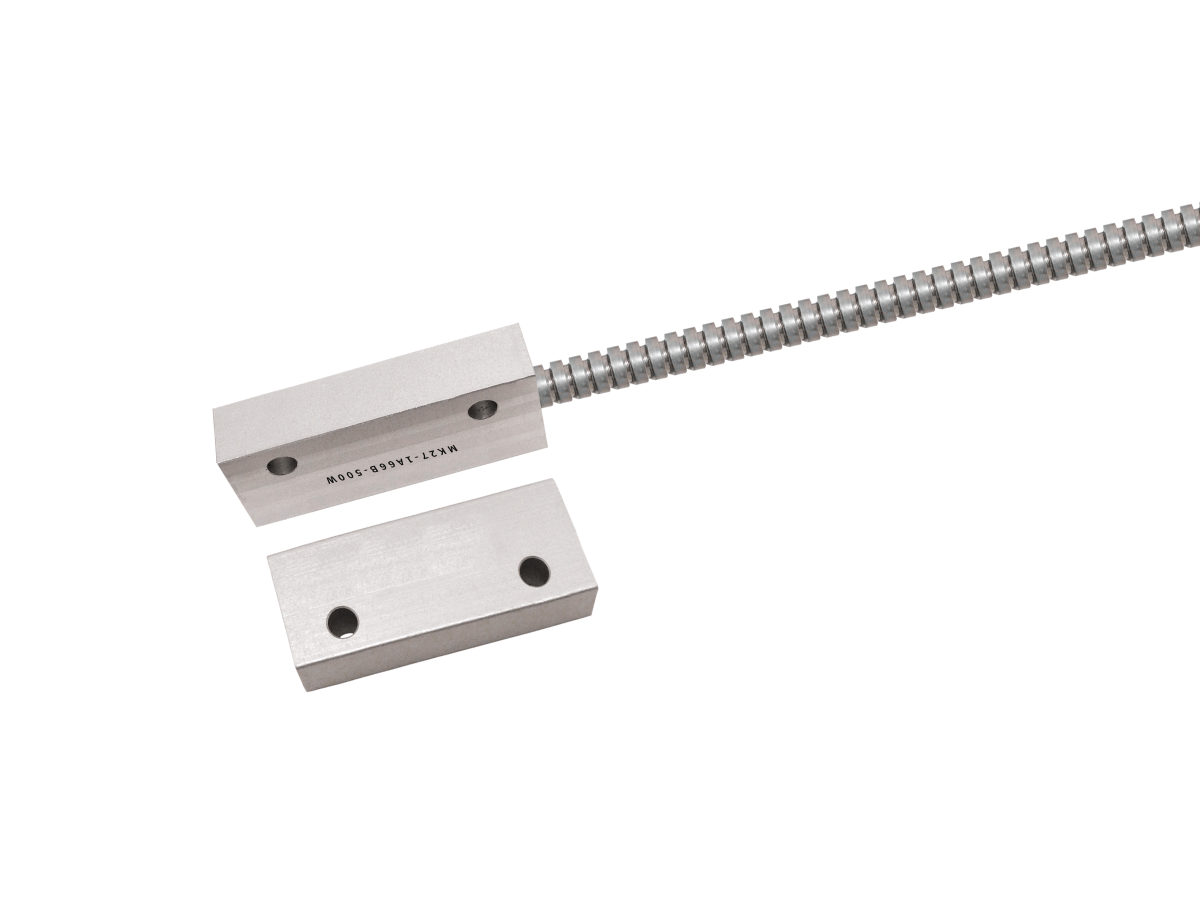

MK27 Series Reed Sensor
The MK27 Series is a rugged, flange-mount reed sensor housed in a rectangular aluminum body, designed for high-voltage switching and harsh industrial conditions. With sensing distances up to 40mm and an included magnet, it’s ideal for position, proximity, motion, and end-limit detection in demanding applications
The MK27 Series delivers robust magnetic sensing with extended range and high-voltage performance, making it a trusted solution for OEMs and engineers working in extreme environments.
Standards and Certifications
- Aluminum rectangular housing with screw flange mount
- High-voltage capability up to 1000VDC
- Sensing distance up to 40mm (magnet included)
- UL-approved and IP67-rated for environmental protection
- Customizable switch type, cable length, and termination
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 1E Latching/Bistable |
| Operating Range | 10-60 AT |
| Rated Power Max. | 100W/1000VDC/1A |
- Agricultural and construction machinery
- Industrial automation
- Security systems
- White goods and appliances
- Mining and forestry equipment
- Commercial vehicles
