High-Isolation Reed Relays for Battery Insulation Monitoring
As Battery Energy Storage Systems (BESS) continue moving toward higher-voltage architectures, accurate insulation monitoring plays an increasingly important role in maintaining system safety, reliability, and uptime. Monitoring insulation resistance between the energized DC system and protective earth helps operators detect potential electrical faults, protect critical assets, and support safe operation of high-voltage energy storage installations.
Standex Detect reed relays are used in these measurement paths because they combine high insulation resistance when open, low leakage current, high dielectric strength, and low contact resistance when closed, helping insulation-monitoring systems deliver accurate measurements in demanding high-voltage environments.
The application is particularly relevant in Commercial & Industrial and Utility-Scale BESS, where DC system voltages commonly range from 1,000 to 1,500 VDC and where reliable monitoring becomes increasingly critical as system size, voltage, and asset value increase.
Primary Applications
- Battery Management System (BMS) insulation monitoring
- Insulation Monitoring Device (IMD) switching
- PCS/Inverter insulation and diagnostic measurement
- Auxiliary high-voltage monitoring circuits
Download the ESS Application Guide
Insulation Monitoring Isn’t Just a Compliance Requirement
It helps operators:
- Improve safety
- Supports earlier fault detection and can help reduce the risk of unexpected shutdowns
- Protect high-value battery assets
- Support reliable operation
- Support monitoring requirements in higher-voltage BESS architectures
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Where Standex Fits in Energy Storage
Energy Storage Systems include a broad range of technologies. This page focuses on Battery Energy Storage Systems (BESS), where Standex Detect relay technology is used in high-voltage monitoring and measurement circuits.
Residential systems remain part of the ESS landscape, but the strongest relay relevance is in larger installations operating at higher DC voltages.
Commercial & Industrial BESS
C&I installations typically operate around 1,000 VDC, with some architectures reaching 1,500 VDC.
These voltage levels increase the requirements placed on components used to measure insulation resistance, route high-voltage diagnostic signals, and separate measurement electronics from the energized DC system.
Utility-Scale BESS
Utility-scale battery systems commonly operate at 1,500 VDC on the DC side.
Higher-voltage architectures are also being investigated, but their adoption will depend on standards, system design, and component availability. Today, 1,500 VDC remains the more relevant reference point for utility-scale BESS.
Residential BESS
Residential storage remains part of the overall ESS market, but it is not the main technical focus of the relay applications described here because operating voltages and relay requirements are generally lower.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Why Insulation Monitoring Matters
A high-voltage battery system must maintain adequate electrical isolation from protective earth and accessible conductive parts.
Insulation resistance can deteriorate because of wiring faults, contamination, moisture, component degradation, or damage elsewhere in the high-voltage system. The BMS, PCS, or a dedicated Insulation Monitoring Device can use controlled measurement paths to determine whether resistance to ground remains above the required threshold.
A reed relay can be used to connect and disconnect these measurement paths.
Why the Relay Matters to the Measurement

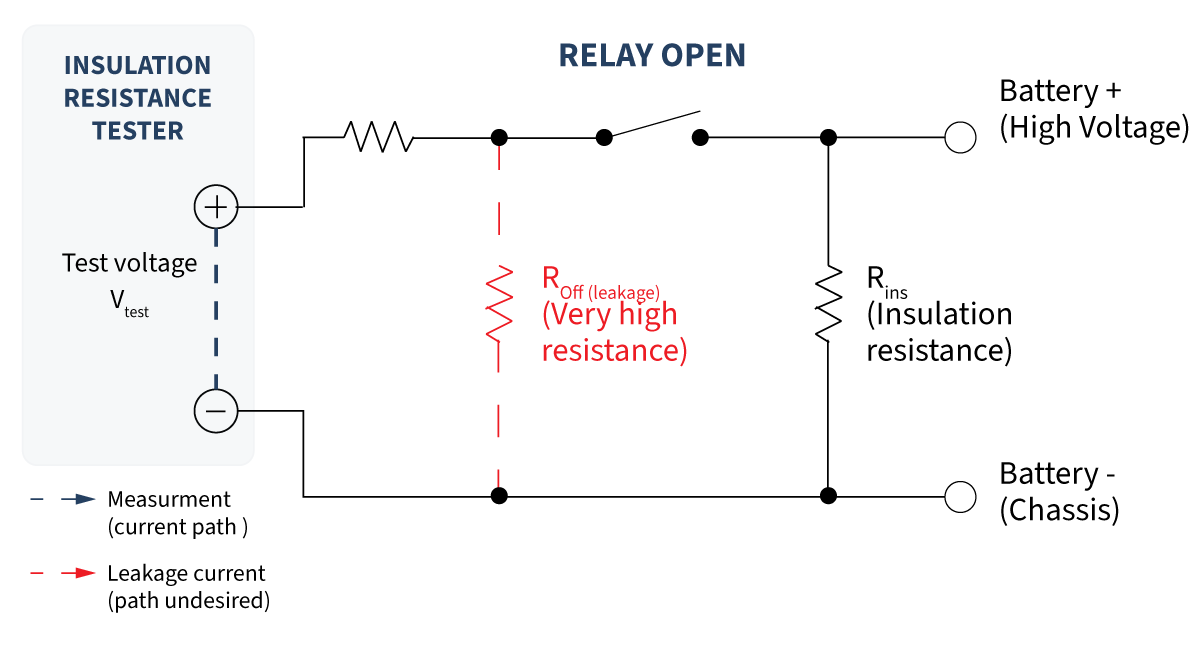

Relay Open (Off)
No current flow through that path
When the relay is open, current should not flow through that path.
In practice, every switching device has finite off-state resistance. Leakage through the relay therefore creates an unwanted parallel path to the insulation resistance the circuit is trying to measure.

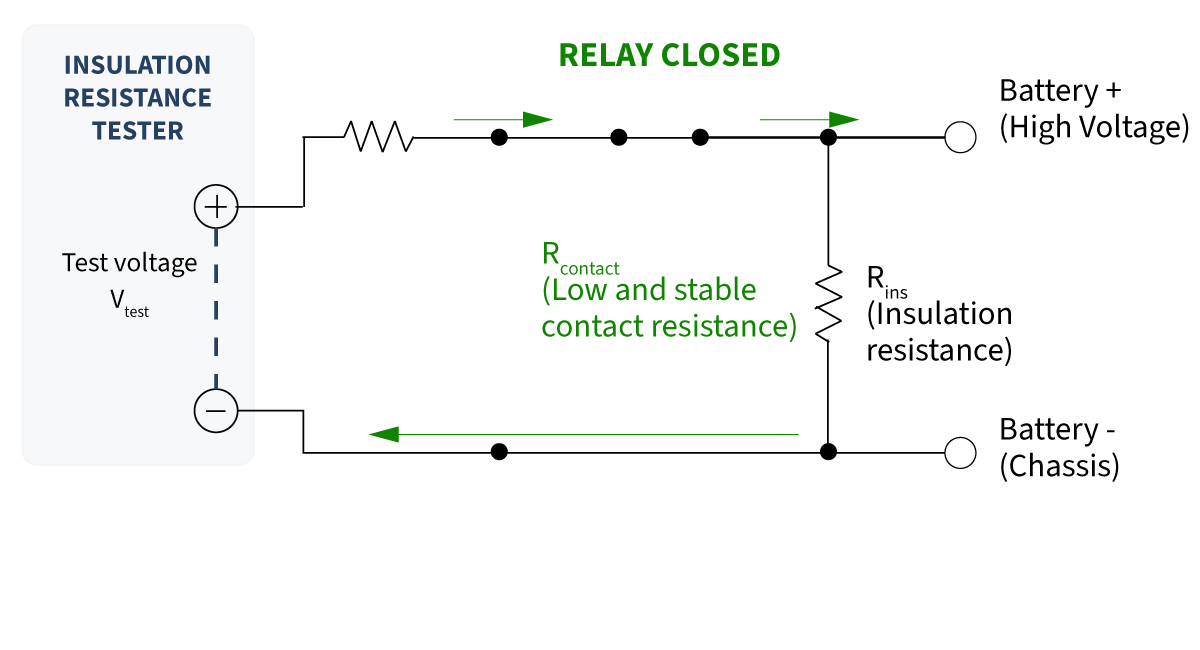

Relay Closed (On)
Measurement current passes through the contact
When the relay closes, the measurement current passes through the contact. Low and stable contact resistance helps keep the relay’s contribution to the closed measurement path small.
Why it Matters
High insulation resistance helps improve insulation-monitoring accuracy, enabling earlier detection of electrical faults and supporting safer operation of high-voltage battery systems.

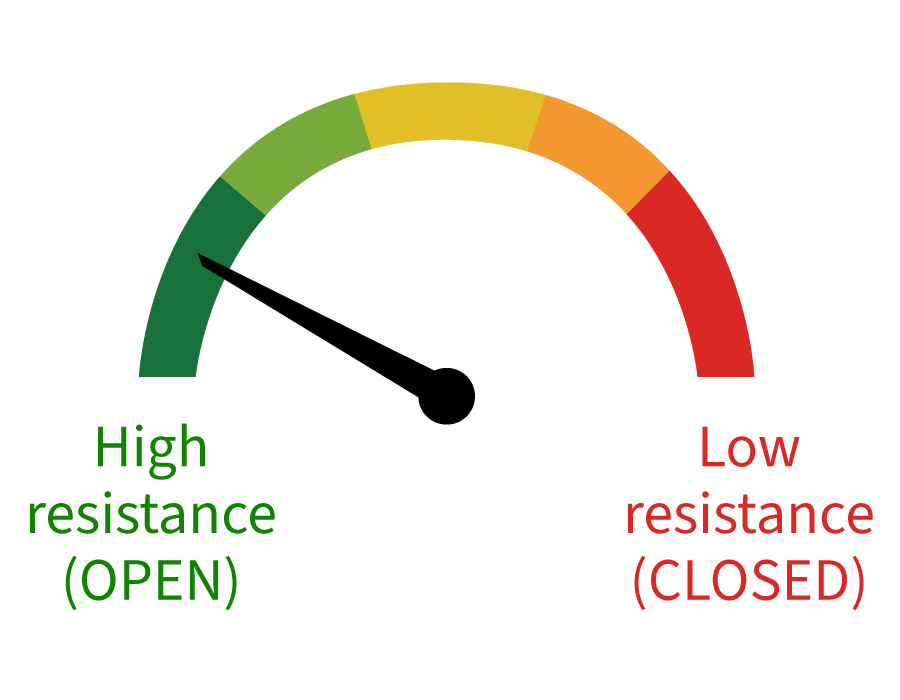

The Relay’s Role
This combination high resistance when open and low contact resistance when closed is central to the relay’s role in insulation-resistance measurement.
Roff (leakage): off-state resistance of the relay (very high)
Rcontact: on-state resistance of the relay (low and stable)
Rins: insulation resistance between HV + and chassis (what is being measured)
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Beyond Compliance: Why Insulation Monitoring Matters to BESS Operators
Insulation monitoring is more than a safety requirement. It helps operators maintain reliable system performance across the entire energy storage installation.
Safety
Insulation monitoring helps identify degradation, contamination, moisture intrusion, and electrical faults before they become larger system risks, supporting safer operation of high-voltage battery systems.
Uptime
Early detection of insulation issues can reduce unexpected interruptions and support higher system availability throughout the lifecycle of the installation.
Reliability
Accurate monitoring helps ensure critical battery, inverter, and power-conversion systems continue operating as intended by providing confidence in the health of the high-voltage electrical system.
Scalability
As BESS architectures continue moving toward 1,500 VDC and beyond, maintaining accurate insulation monitoring becomes increasingly important for supporting next-generation energy storage platforms.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
The Relay’s Role in Overall BESS System Performance

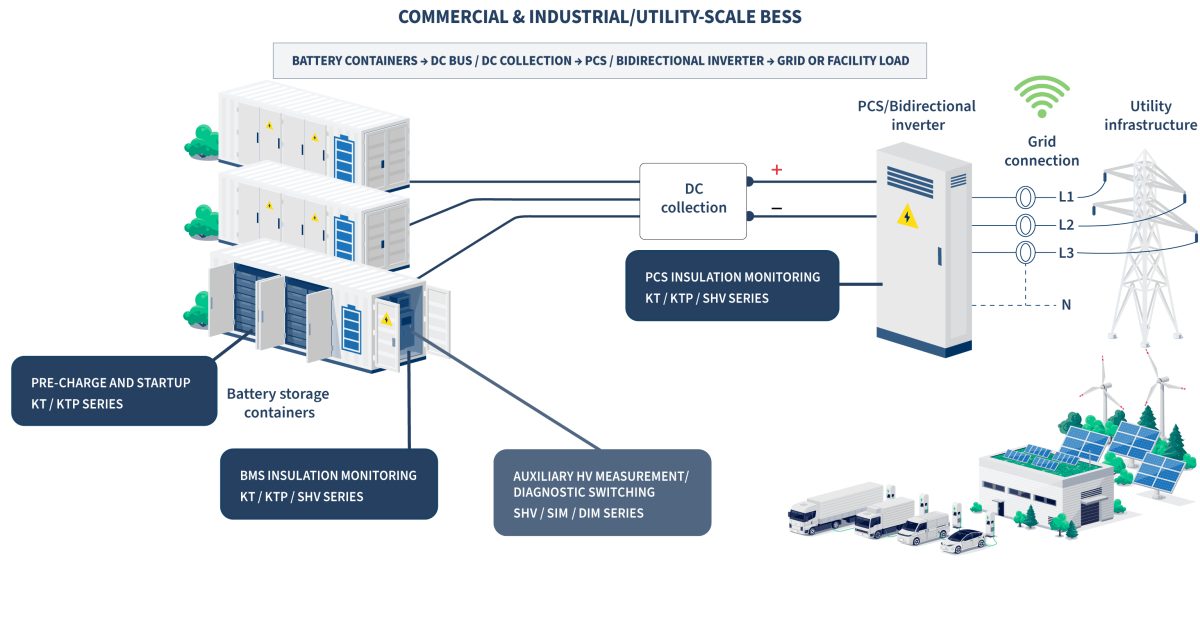

Battery Containers → DC BUS / DC Collection → PCS / Bidirectional Inverter → Grid or Facility Load
Standex reed relays are used in monitoring, measurement, and selected control circuits around the main power path, not as the primary battery disconnect. Their role is helping insulation-monitoring systems deliver the accurate measurements needed to support safety, reliability, uptime, and long-term asset protection throughout the installation.
BMS / Insulation Monitoring
A relay switches the measurement path between the high-voltage system and the insulation-monitoring circuit.
Relevant Products: KT/KTP
- Very high insulation resistance limits leakage through the open relay while the monitoring circuit evaluates resistance to ground.
Read the Blog: Monitoring Insulation in Energy Storage Systems
PCS / Inverter Monitoring
The PCS interfaces the battery DC bus with the AC system. Depending on system topology, insulation or diagnostic measurements may also be required around the power-conversion stage.
Reed relays can route these high-voltage measurement signals while maintaining isolation when the path is not selected.
Relevant Products: KT/KTP/SHV
- Product selection depends on the actual switched voltage, dielectric requirement, and load.
Pre-Charge Control in Controlled High-Voltage Startup
In many high-voltage BESS architectures, the battery is connected to the PCS or inverter through contactors. Before the main power path closes, a pre-charge circuit limits inrush while the DC-link capacitors charge through a resistor. A Standex high-voltage reed relay can control this temporary pre-charge path where the circuit voltage, current, and switching energy are within its ratings. Once the DC-link voltage approaches the battery voltage, the main contactor closes and normal operation begins.
Relevant products: KT / KTP
- The reed relay does not replace the main BESS power contactor. Its suitability for the pre-charge path depends on the actual resistor, capacitance, voltage, current, switching energy, and operating sequence.
Read the Blog: High-Voltage Reed Relays in Pre-Charge Circuits
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Reed Relay Properties That Matter in BESS
High Insulation Resistance
- An insulation-monitoring circuit is intentionally measuring a very high-resistance path. The switching element must therefore contribute as little parallel leakage as practical.
- The KT and KTP series are specified with minimum insulation resistance of 10¹³ Ω.
Dielectric Strength
- When the relay is open, its contacts can be exposed to a substantial potential difference.
- The required breakdown capability depends on circuit topology, working voltage, and the applicable insulation-coordination requirements.
- Switching voltage and open-contact dielectric withstand are different specifications and must be considered separately when selecting the relay.
Galvanic Separation Between Control and Measurement Circuits
- A reed relay uses a magnetic field generated by the coil to actuate the reed switch. There is no conductive connection between the coil drive and the switched contact circuit.
- This allows a low-voltage control circuit to operate a high-voltage measurement path while maintaining electrical separation between the two circuits.
Low Leakage at Very Low Measurement Current
- Insulation-monitoring circuits do not require the relay to carry the main BESS load current.
- Instead, the relay switches a measurement path where unwanted leakage can be more important than current-carrying capability.
- This is one of the reasons reed technology is well suited to this application.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Recommended Relay Platforms
Main Platform for BESS Insulation Monitoring

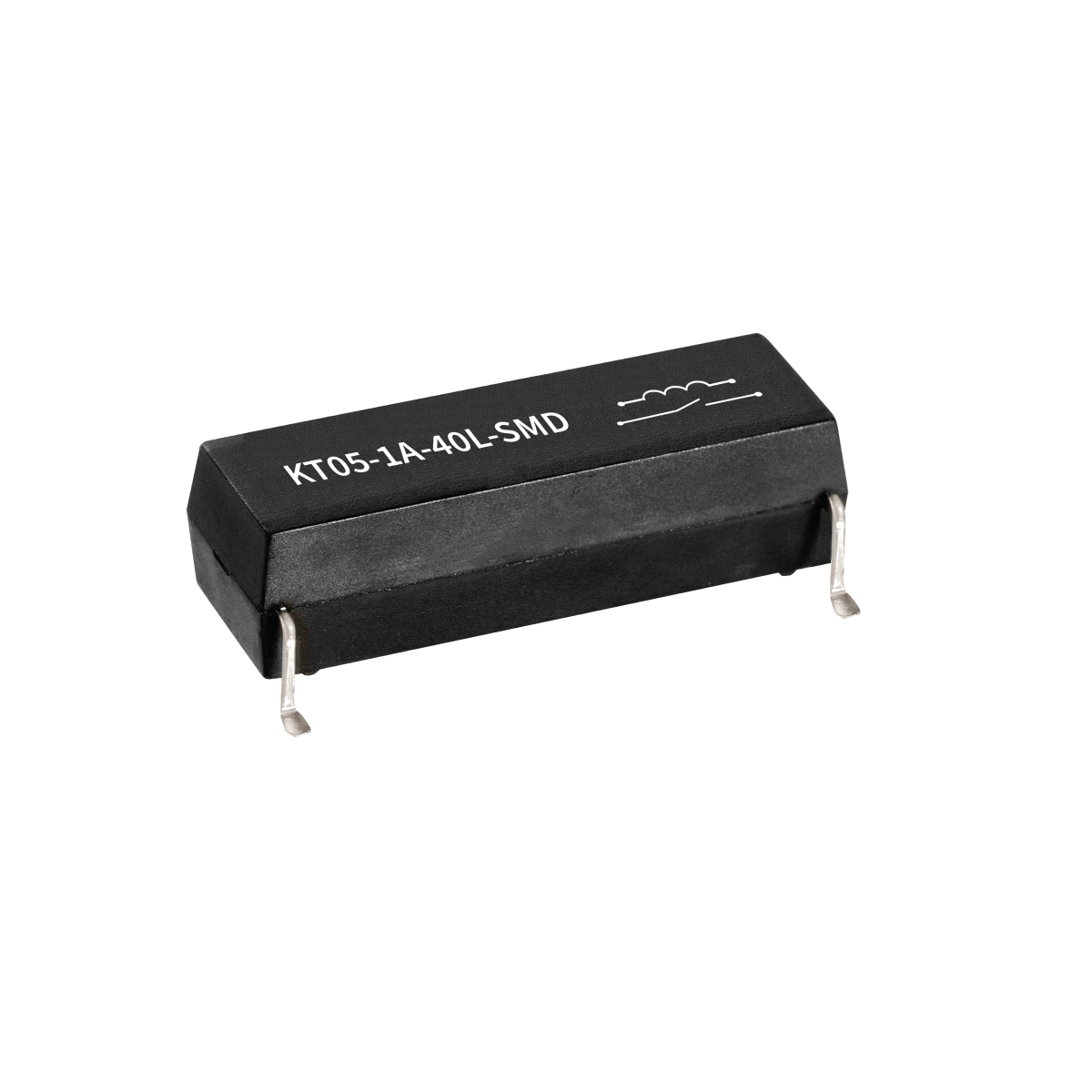

The KT series is the established Standex platform for high-voltage insulation-monitoring applications.
Key specifications
- Switching voltage: up to 1,000 VDC
- Breakdown voltage: 4.5 kVDC minimum
- Coil-to-contact isolation: 7 kVDC
- Insulation resistance: 10¹³ Ω minimum
- Switching current: up to 1.0 A
- SMD and THT mounting
- AEC-Q200 tested
- UL Recognized
Typical application:
BMS and insulation-monitoring circuits where the relay must combine high-voltage capability with very low off-state leakage.
Higher-Voltage Extension of KT

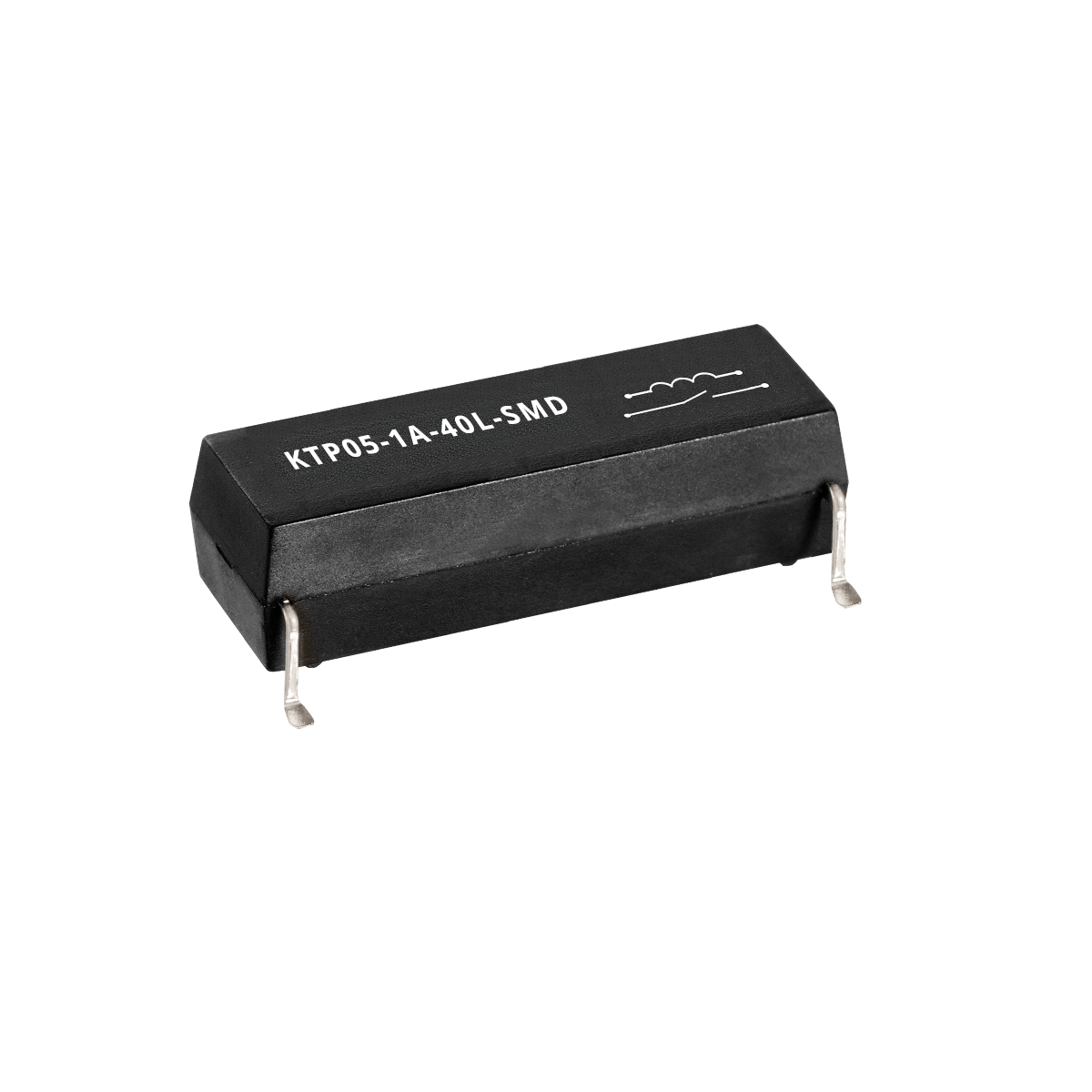

KTP extends the KT platform for circuits requiring greater switching-voltage capability.
Key specifications
- Switching voltage: up to 2,500 VDC
- Breakdown voltage: 6 kVDC minimum
- Coil-to-contact isolation: 7 kVDC
- Insulation resistance: 10¹³ Ω minimum
- Switching current: up to 1.5 A
- SMD and THT mounting
Status: NEW / Samples Available / Pre-Launch
The 2.5 kVDC figure is the relay switching rating. It does not represent the typical nominal voltage of current BESS installations.
Higher-Voltage Diagnostic Switching

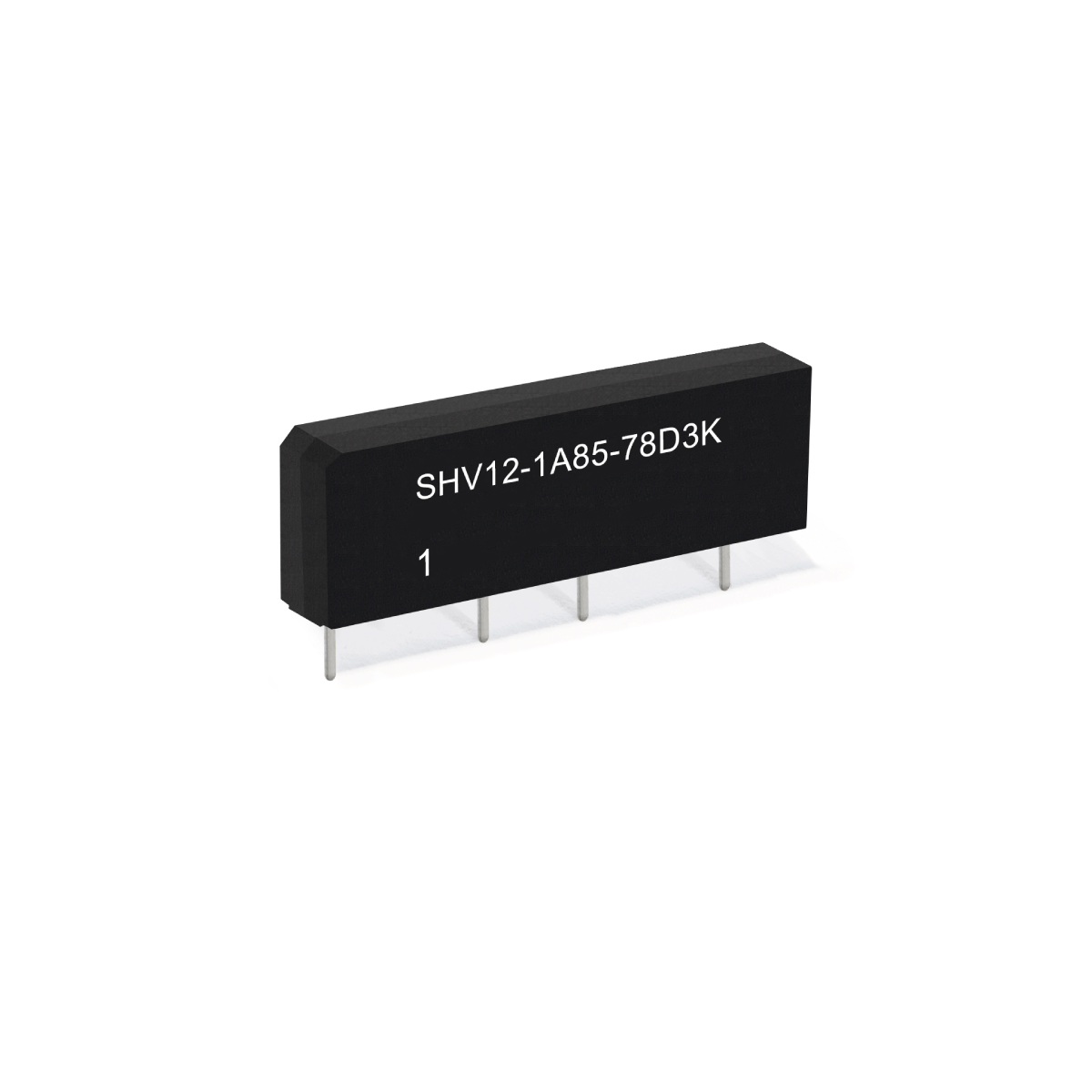

SHV can be used for high-voltage measurement and diagnostic paths where its electrical characteristics match the circuit requirements. KT and KTP remain the main products for the insulation-monitoring application.
Key specifications
- Switching voltage: up to 1,500 VDC
- Breakdown voltage: 5 kVDC minimum
- Insulation resistance: 10¹² Ω minimum
- Internal magnetic shield
Auxiliary Measurement and Diagnostic Circuits

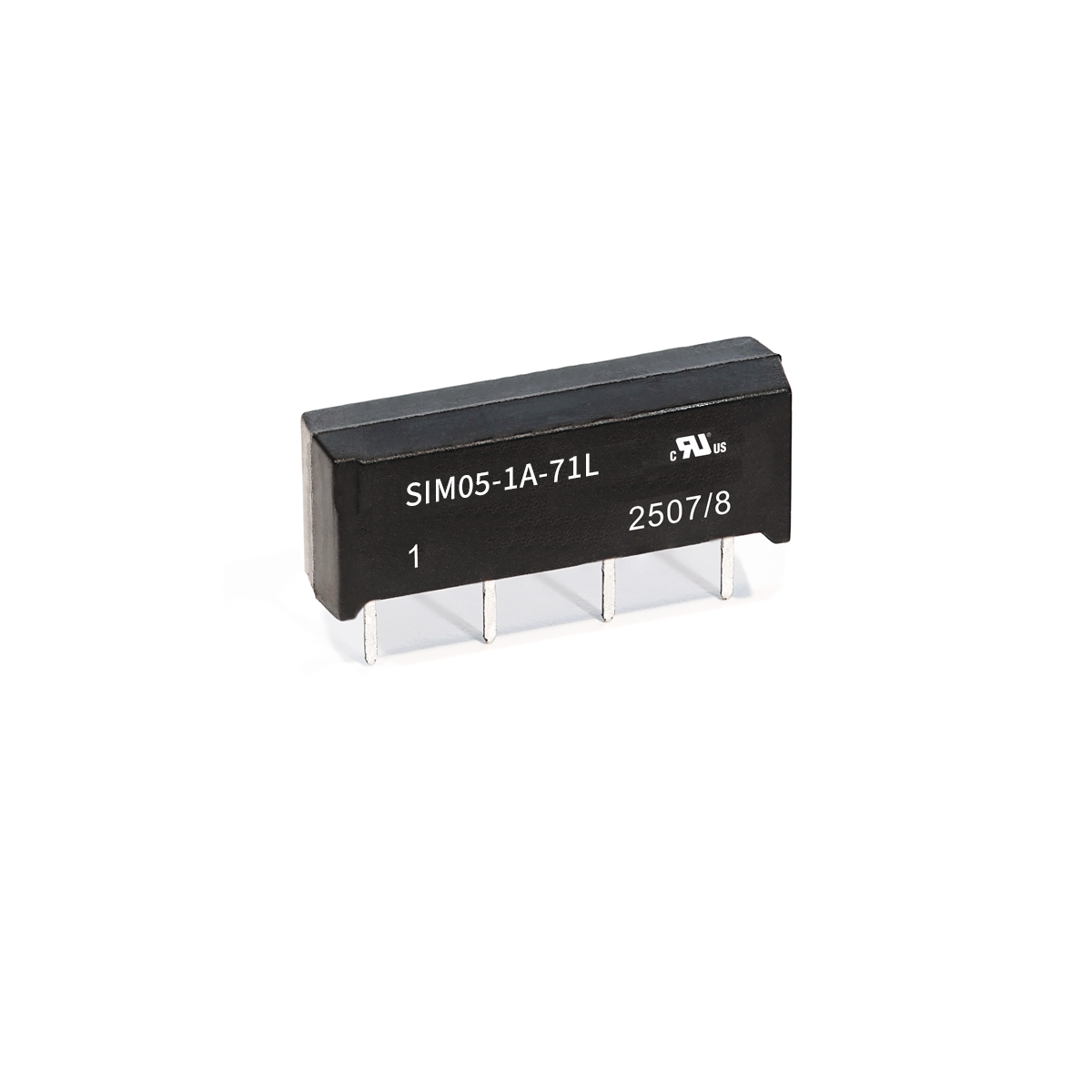

SIM provide compact switching options for lower-voltage measurement, control, and diagnostic circuits.
Key specifications
- Switching voltage: up to 500 VDC
- Breakdown voltage: 2 kVDC minimum
- Optional breakdown capability up to 3 kVDC
- Insulation resistance: 10¹² Ω minimum
Their role is in circuits where the actual switched voltage remains within the relay rating. They are not intended to switch a 1,000–1,500 V BESS DC bus directly
Auxiliary Measurement and Diagnostic Circuits

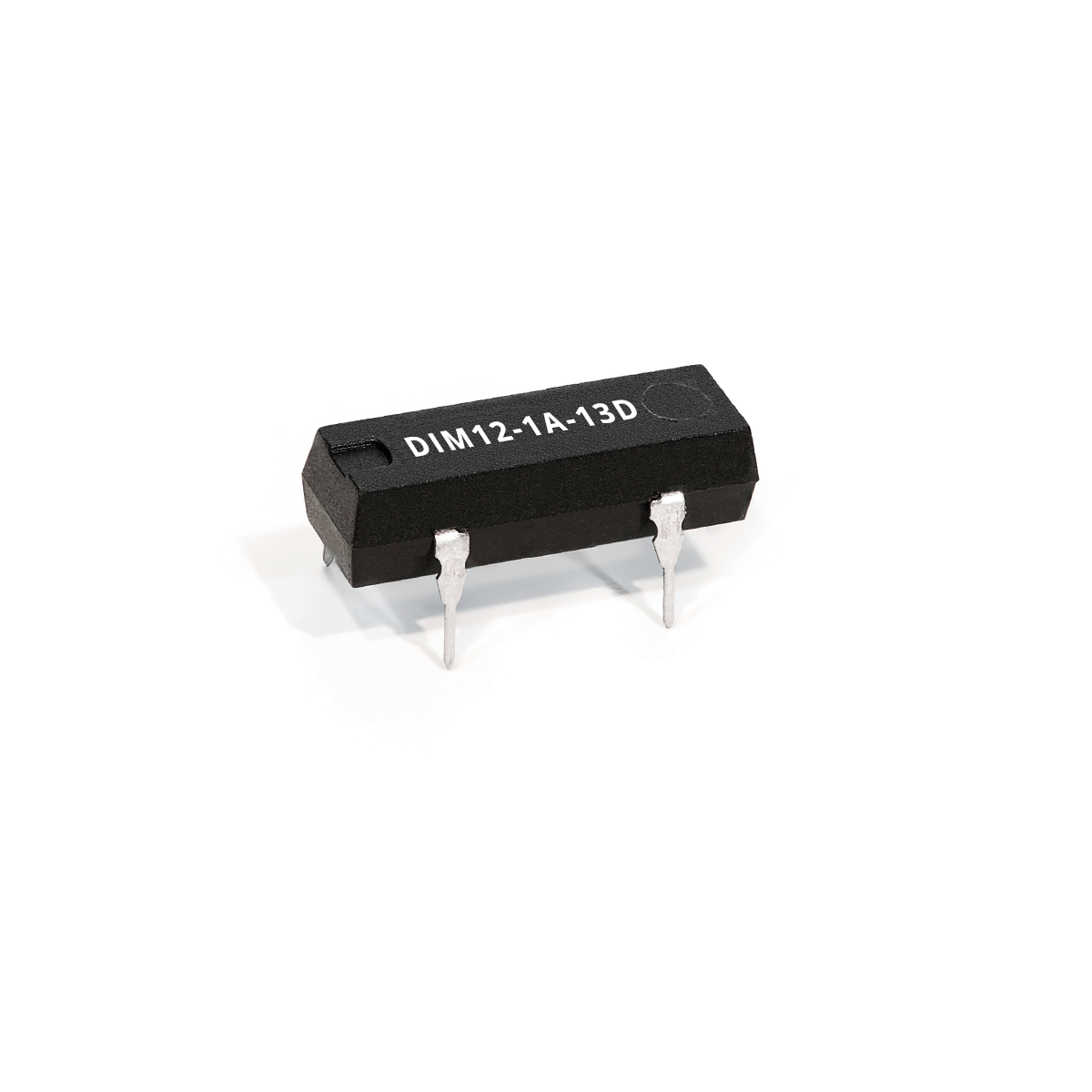

DIM provide compact switching options for lower-voltage measurement, control, and diagnostic circuits.
Key specifications
- Switching voltage: up to 500 VDC
- Breakdown voltage: 2 kVDC minimum
- Optional breakdown capability up to 3 kVDC
- Insulation resistance: 10¹² Ω minimum
Their role is in circuits where the actual switched voltage remains within the relay rating. They are not intended to switch a 1,000–1,500 V BESS DC bus directly
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
From Measurement Accuracy to System Reliability
Insulation monitoring is more than a compliance requirement.
Accurate monitoring helps operators:
- Detect insulation degradation earlier
- Supports earlier fault detection and can help reduce the risk of unexpected shutdowns
- Support safe operation of high-voltage battery systems
- Improve long-term system reliability
- Protect critical energy-storage assets
The relay’s role may be small within the overall architecture, but the measurement decisions it enables can have system-wide implications.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Relay Selection Is a Circuit Decision
A nominal BESS voltage is not enough information to select a relay.
The engineer should consider:
| Checklist | Selection Criteria |
|---|---|
 | maximum voltage actually appearing across the relay contacts |
| required open-contact dielectric strength |
| insulation resistance and acceptable leakage error |
| switched current and load type |
| capacitive or inductive energy |
| operating frequency and expected number of switching cycles |
| creepage and clearance requirements in the completed PCB or system |
For pre-charge and other power-related paths, load energy and inrush conditions require particular attention.
Standex Detect can evaluate these conditions because both relay design and the underlying reed-switch technology are available within the same engineering and manufacturing organization.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Why Standex Detect Is Different
Not every insulation-monitoring application fits a standard catalog product. As system voltages increase and architectures become more specialized, application requirements often demand more than a datasheet comparison.
Beyond Standard Relay Selection
Standex Detect works with customers to evaluate real-world operating conditions, including:
- Leakage-current requirements
- Working voltage and dielectric margins
- Switching profiles and operating cycles
- Creepage and clearance requirements
- Environmental and lifecycle expectations
Because relay development, reed-switch fabrication, and testing are all supported within the same organization, parameters such as coil characteristics, shielding, creepage distances, package configurations, and validation test profiles can be reviewed against the actual application requirements.
For applications that require additional validation, load-specific lifecycle testing can be performed under the customer’s actual switching conditions to help verify long-term performance and reliability.
The Result
Rather than forcing an application to fit a standard relay, Standex Detect helps engineers develop monitoring solutions optimized for the realities of their circuit, architecture, and operating environment. This enables more accurate insulation monitoring, greater system reliability, and a clearer path to supporting next-generation high-voltage BESS platforms.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
AI Data Centers: A Related High-Voltage Trend
AI data centers are not a separate ESS category, but they are becoming a relevant use case for battery storage and high-voltage DC power infrastructure.
Higher-voltage DC distribution concepts, including 800 VDC architectures, are being developed for high-density AI computing. High-resistance-grounded architectures under consideration share insulation-monitoring principles already used in EV and BESS systems.
This creates a potential future application for the same low-leakage, high-isolation measurement switching used in BESS insulation monitoring.
The technology remains a developing application area rather than an established BESS relay market today.
Jump to: Introduction | Where Standex Fits in Energy Storage | Why Insulation Monitoring Matters | Beyond Compliance | The Relay’s Role in Overall BESS System Performance | Reed Relay Properties | Recommended Relays | From Measurement Accuracy to System Reliability | Why Standex Detect | High-Voltage Trend | Precision Partner
Your Design Partner for Precise Measurements
For When it Matters – The Right Design, at the Right Time, at the Optimal Cost.
As Battery Energy Storage Systems continue moving toward higher-voltage architectures, accurate insulation monitoring becomes increasingly important to safe and reliable operation. The purpose of these monitoring systems is not simply to satisfy a technical requirement, but to help operators detect potential electrical faults, maintain system availability, protect high-value assets, and support long-term performance.
Standex Detect reed relays play a critical role in these measurement paths by providing the high insulation resistance, low leakage current, dielectric strength, and galvanic isolation required for accurate monitoring of high-voltage systems.
For Standex Detect, the most relevant BESS application is not switching battery power. It is enabling the precise measurements that support:
- Safety through early detection of insulation degradation
- Improved Reliability through accurate high-voltage monitoring
- Higher Uptime through reduced risk of unexpected interruptions
- Better Asset Protection for batteries, PCS/inverters, and power electronics
- Support for High-Voltage Architectures as BESS systems continue evolving beyond today’s 1,000-1,500 VDC platforms
End-to-End Design
With complete in‑house control from reed switch fabrication to finished relay assembly, Standex Detect designs, manufactures, tests, and qualifies switching solutions entirely within our organization. This vertical integration ensures consistent performance, stable supply, and faster development cycles, critical for precise switching and measurement.
Custom Engineered
Standex Detect helps engineers optimize monitoring systems that enable these outcomes combining proven relay platforms, application expertise, and engineering support to improve the safety, reliability, and scalability of next-generation energy storage systems.
Global Scale. Application Expertise.
With engineering and manufacturing operations across North America, Europe, and Asia, Standex Detect supports battery energy storage systems from prototype through production. Backed by deep materials science expertise and proprietary lifecycle testing, our switching solutions deliver reliable performance across complex BESS architectures.
Co-Engineering Partnership
From architecture development to component selection, we work alongside engineering teams to enable precise measurements without compromising measurement accuracy, signal integrity, or system performance.
Discuss Your BESS Reliability & Monitoring Requirements
Relay selection should be based on the conditions at the actual switching point.
Provide the switched voltage, current, load type, insulation or dielectric requirement, and expected operating profile. Standex Detect can then evaluate the appropriate standard relay series or determine whether application-specific configuration and testing are required.
