MK38 Series Reed Sensor

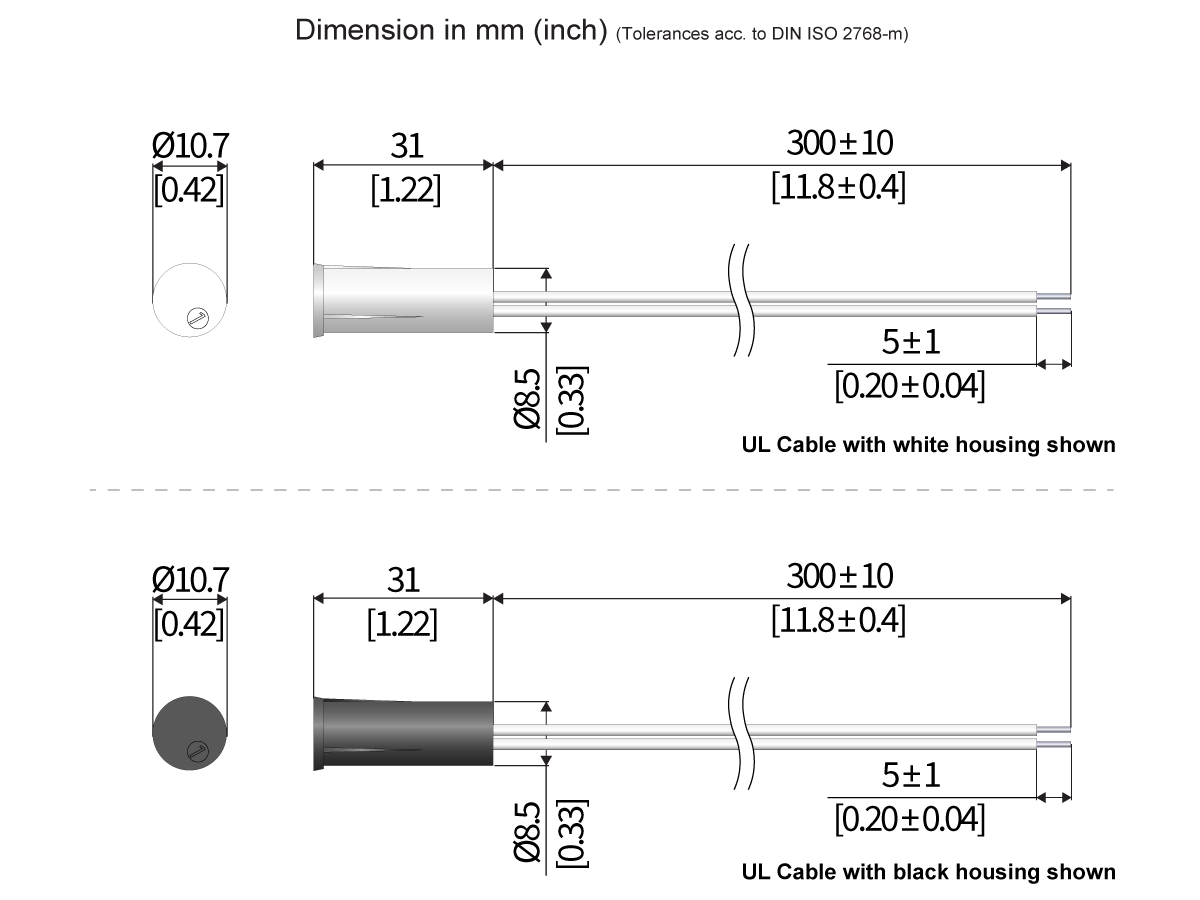

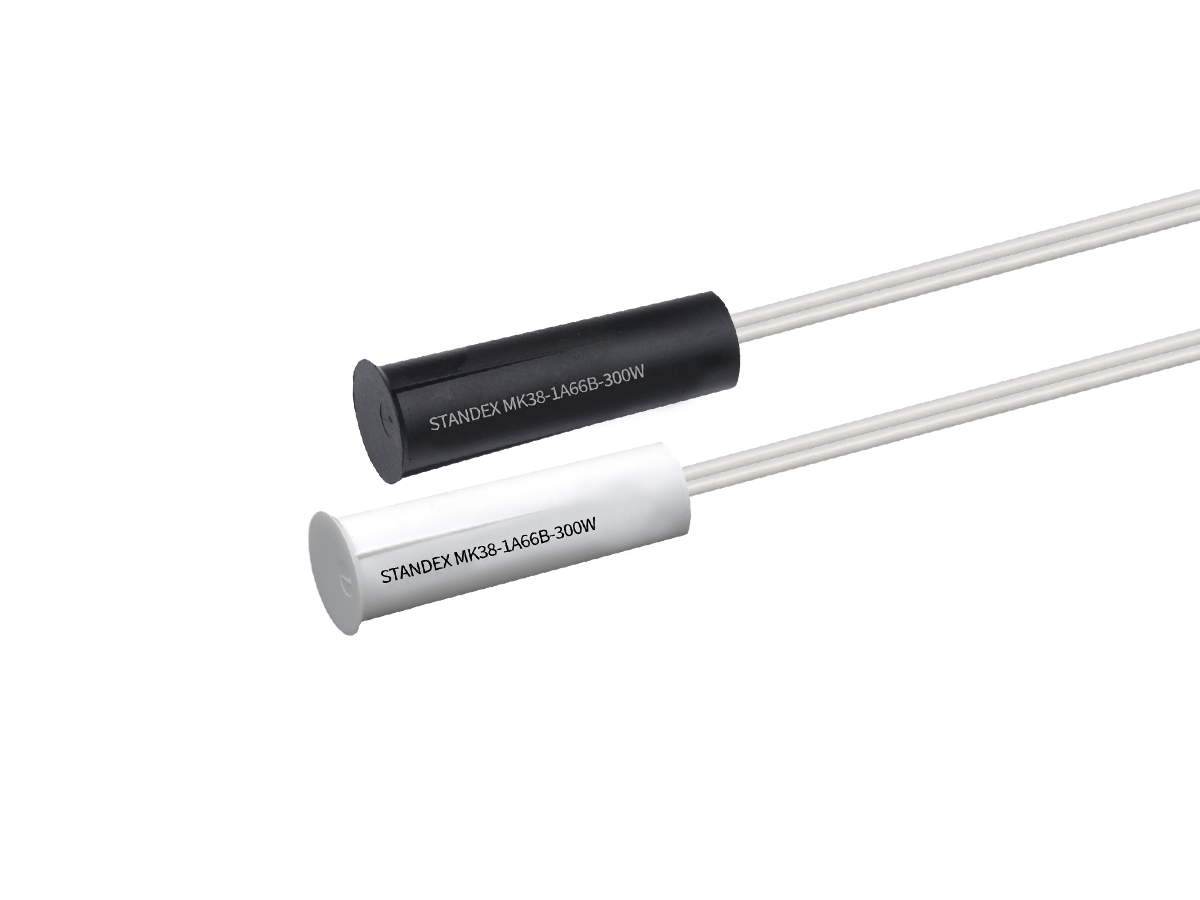

The MK38 Series Reed Sensor is a recessed magnetic sensor that is designed for installation in a ø3/8” hole or in a ø3/4” hole when using an adapter. The sensor is designed for a press fit installation that utilizes crush ribs to retain the sensor in the installation hole as well as a mating magnet to match. Housings are available in both white and black along with cable options of a 2 conductor UL rated cable or a VdS compliant cable with a sabotage loop.ant cable with a sabotage loop.

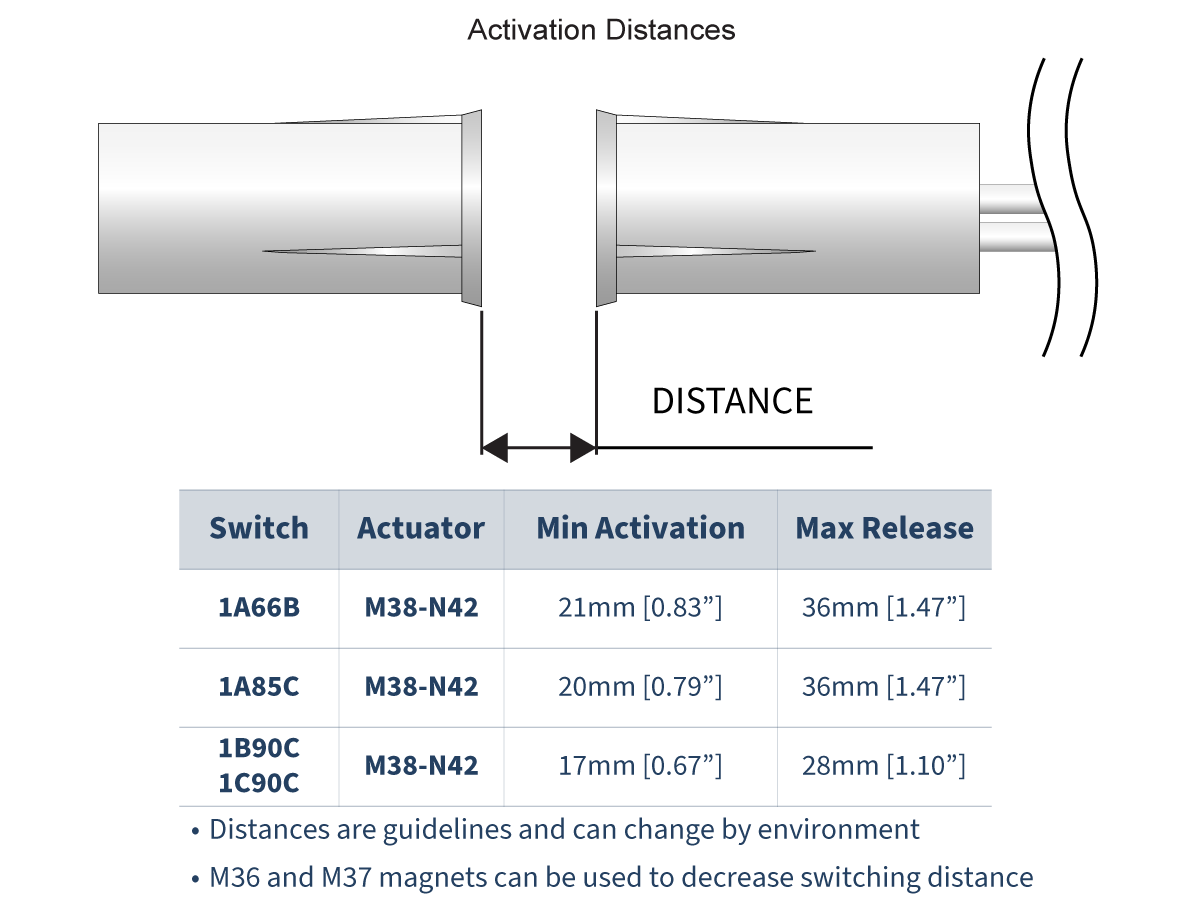

Sensor commonly paired with mating M38 magnet or can be paired with M36 and M37 magnet for reduced switching distance.
Standards and Certifications
- Normally Open, Normally Closed, and Single Pole Double Throw Sensor Logic Available
- Normally Open Power Ratings 10 Watt / 180 Volts / 0.5 Amp
- Normally Open High Power Ratings 100 Watt / 300 Volts / 1.0 A
- Normally Closed and SPDT Power Ratings 3W / 30 Volts / 0.2A

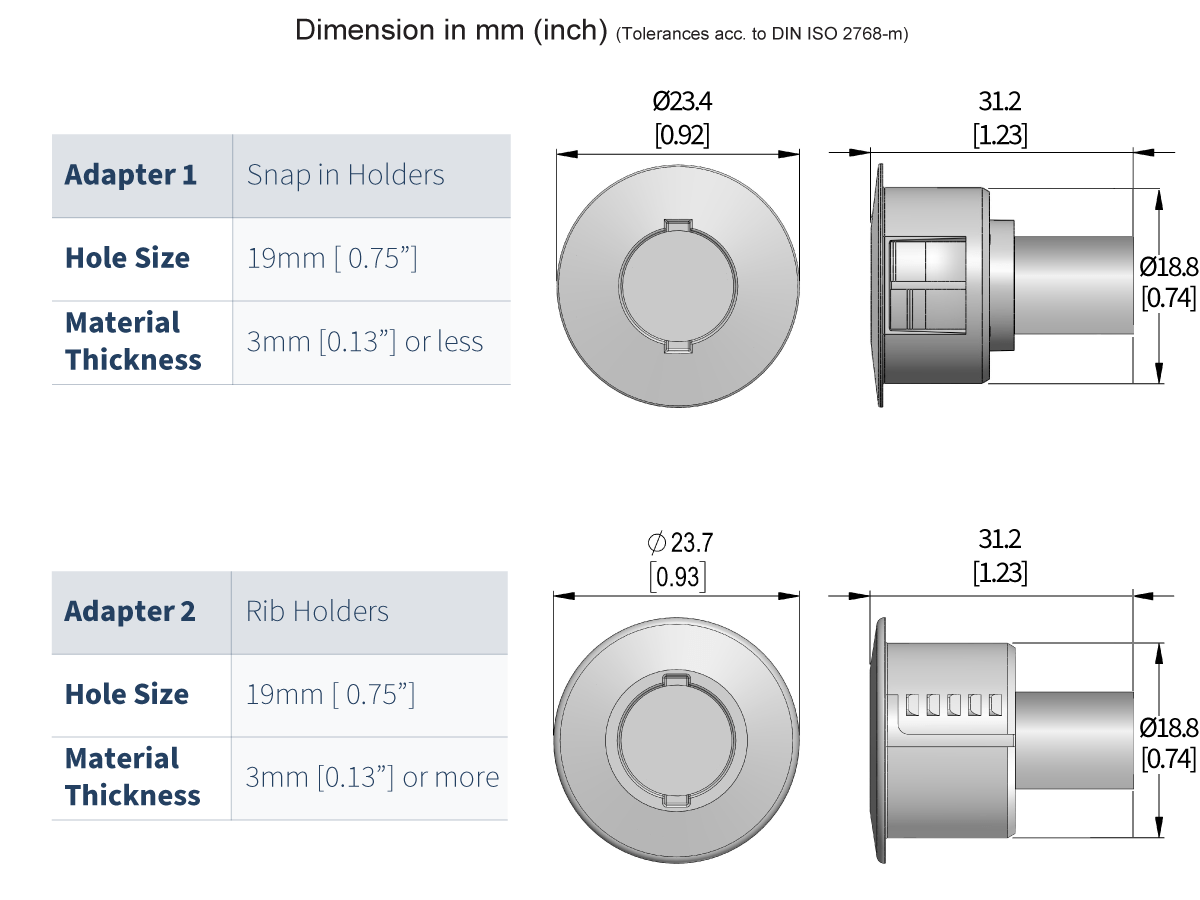

- Adapter Options Available When Installing in Ferromagnetic Material
- Customization Options: Cable Harness Length, Connector Options
- Sensor commonly paired with mating M38 magnet
- Sensor can be paired with M36 and M37 magnet for reduced switching distance
| Operating Range | 10-20 AT |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 10W/180VDC/0.5A |
| Rated Power Max. | 100W/300VDC/1.0A |
| Contact Form | Contact Form 1B (SPST) Normally Closed (N.C.) 1C (SPDT) Single Pole Double Throw |
| Rated Power Max. | 3W/30VDC/0.2A |
- Security panels and machine controls
- Building Automation and Security
- Home Appliances
- Limit sensing
