Industrial systems are becoming more electrified, driving higher power demands and challenges like high inrush currents, harsh environments, and the need for long‑lasting sensing. Standex Detect High Power Reed Sensors are built for these conditions, delivering durability, precision, and electrical robustness where traditional switches fall short.
If there are particular areas you need help with, feel free to skip to any of the following sections:
- Engineered to Handle High Inrush Current. Proven in Industrial Reality.
- The Industrial World Is Getting Tougher. Your Sensors Must Too.
- In Line Current Switching for Lamp Loads and Inrush Current Heavy Devices
- Featured High Power Reed Sensors
- Typical High Inrush Current Applications and Load Ranges
- Why Standex Detect Sensors Excel in High Power Environments
- High Power Switching Where It Matters Most
Engineered to Handle High Inrush Current. Proven in Industrial Reality.
HIGH VOLTAGE • HIGH INRUSH CURRENT • HIGH POWER REED SENSORS
Standex Detect high power reed sensors are purpose engineered to handle lamp and lighting loads with high inrush current, delivering reliable switching performance of 1 amps all the way up to 3 amps in demanding industrial and commercial systems.
These sensors provide the precision, stability, and long life reliability required where electrical stress and harsh operating environments push conventional sensing technologies beyond their limits.
Challenges in
Harsh Environments
- Contact welding and dielectric breakdown:
High inrush currents can cause premature component failure. - Mechanical wear and corrosion:
Traditional contacts degrade when exposed to solvents, water, or dust. Dust-filled facilities and wash-down processes compromise mechanical switches. - Costly system damage:
Frequent replacements increase maintenance expenses and reduce equipment uptime.
The Industrial World Is Getting Tougher. Your Sensors Must Too.
Modern industrial systems increasingly rely on electrified actuators, lighting, alarms, and safety devices many of which create high inrush currents at turn on, even when steady state current is relatively low.
In these environments, a sensing failure caused by contact welding, dielectric breakdown, or environmental contamination can lead to:
- Unplanned downtime
- Unsafe operating conditions
- Premature component failure
- Costly system damage
Standex Detect high power reed sensors address these challenges through hermetically sealed construction and application driven electrical design, ensuring predictable switching performance even under high inrush current, mechanical shock, vibration, and contamination.
In Line Current Switching for Lamp Loads and Inrush Current Heavy Devices
Standex Detect high power reed sensors can be wired directly in line to control loads where inrush current, not steady state current, is the primary design concern.
These sensors are particularly well suited for lamp and lighting loads, where initial current surges can be several times higher than normal operating current.
Key capabilities include:
Key Capabilities of Reed Sensors
- Up to 3 amps switching capacity for lamp and lighting loads
- Proximity and liquid level sensors rated for switching currents of 1 A and 1.5 A
- High dielectric strength to prevent leakage and false actuation
- Non contact magnetic actuation for extended service life
- Hermetic isolation from harsh industrial environments
This makes high power reed sensors ideal for direct ON/OFF control, eliminating the need for additional electronics in many applications.
Lamp loads and long cables can create a capacitive build up generating a high Inrush current.

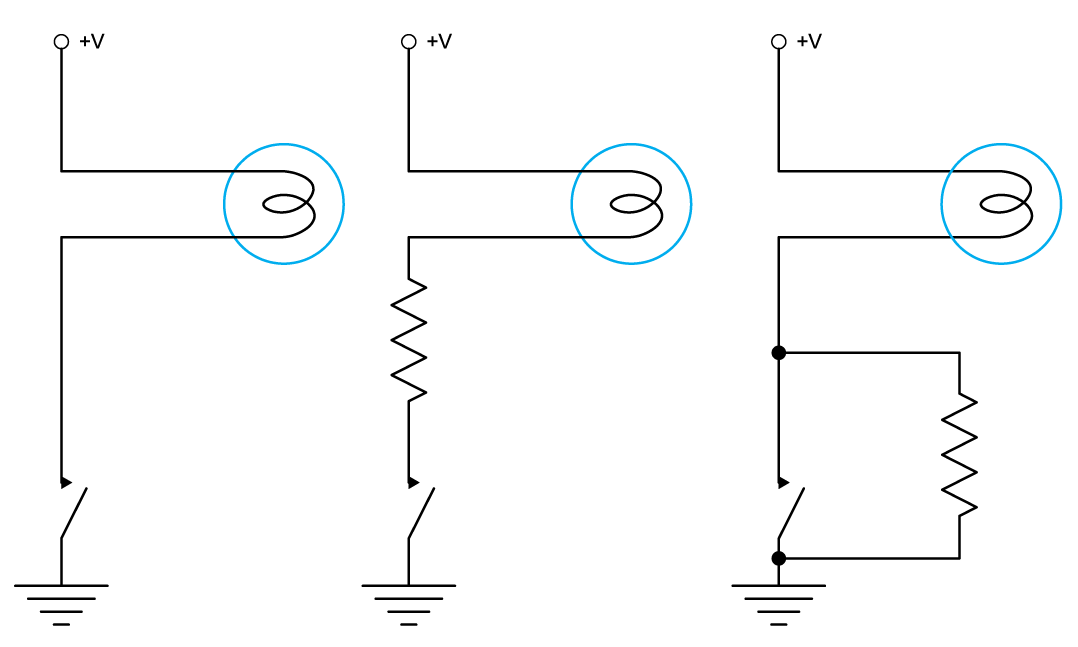

Potential solutions for handling inrush currents to extend the life of a reed switch include:
Solutions for Handling Inrush Currents
- Using a reed switch rated for higher currents
- Adding a resistor in series of the reed switch
- Adding a resistor in parallel of the reed switch

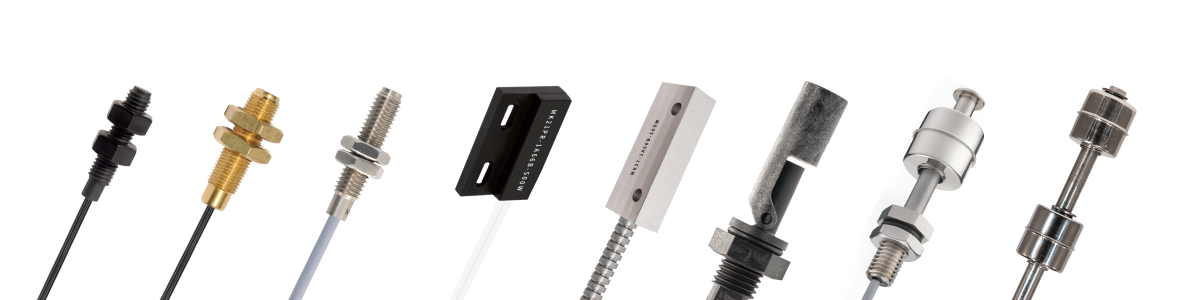

Featured High Power Reed Sensors
All of the featured reed sensors below can be customized with high‑voltage switch configurations, cable lengths, and termination options to fit a wide range of applications.
With contact forms including Form A, B, and C, you can tailor the switching setup that best meets your system’s needs. For High Current switching, sensors come in Form A (Normally Open) configurations meaning when the magnet is not present, the sensor is in an open state.
| Series | Features |
|---|---|
| MK11 Plastic Proximity Sensor | M8 thread mount for adjustable positioning Plastic cylindrical housing with cable terminals 0.984″ L (25.0mm0) x M5 x0.049″ Thread (1.25) |
| MK11 Brass Proximity Sensor | Brass cylindrical housing with adjustable thread mount Available in M6, M8, M10, and M12 thread sizes 1.496″ L (38.00mm) x M6 1.496″ L (38.00mm) x M10 x 0.039″ Thread (1.0) |
| MK11 Stainless Proximity Sensor | Stainless steel cylindrical housing for rugged durability M5/M8 thread mount for adjustable positioning 0.984″ L (25.00mm) x M5 x 0.020″ Thread (0.50) 1.968″ L (50.00mm) x M8 x 0.049″ Thread (1.25) |
| MK21, MK21PR Proximity Sensor | Rectangular flange-mount housing with cable terminals MK21M variant supports high-temperature environments up to +150°C Right-side cable exit available (MK21PR variant) 1.122″ L (28.50mm) x 0.748″ W (19.00mm) x 0.246″ H (6.25mm) |
| MK27 Series Proximity Sensor | Aluminum rectangular housing with screw flange mount Sensing distance up to 40mm (magnet included) 1.969″ L (50.00mm) x 0.787″ W (20.00mm) x 0.394″ H (10.00mm) |
| LS02 Series Liquid Level Sensor | Stainless steel shaft and float for enhanced durability High temperature tolerance up to 120°C 2.953″ L (75.00mm) x M10 x0.039″ Thread (1.00) |
| LS03 Series Liquid Level Sensor | Side mount installation in tanks and reservoirs High temperature resistance up to 150°C Constructed from PA or PP for chemical and thermal durability 3.268″ L (83.00mm) x M16 x0.079″ Thread (2.00) |
| LS05 Series Liquid Level Sensor | Durable stainless steel for high-temperature and high-pressure Supports single, multi-point, and continuous level sensing Multiple float positions (minimum 1.5” spacing) 3.150″-78.74″ L (80.00-2000mm) x M10-30 x0.049″ Thread (1.25) |
Standex Detect high power reed sensors are commonly used in applications such as:
Recommended Proximity Sensors
Recommended Liquid Level Sensors
Typical High Inrush Current Applications and Load Ranges
Applications
- Solenoid valve switching
- Indicator and signal light control
- LED lighting load switching
- Alarm and siren activation
- Automotive accessory switching
- DC fan and blower control
- Interlock and guard switching
- End‑of‑stroke detection
- Position‑based power control
- In‑line load switching
- Conveyor gates and diverters
- Pneumatic cylinder end‑of‑stroke detection
Why Standex Detect Sensors Excel in High Power Environments
1. Precision Switching for High Inrush and Elevated Electrical Loads
High power reed sensors from Standex Detect are engineered to manage electrical stress at turn on, where many switches fail prematurely.
Design features include:
- High dielectric withstand capability
- Low and stable contact resistance
- Minimal contact bounce during closure
- Tight operate and release tolerances
- Consistent switching across wide temperature ranges
These characteristics allow engineers to confidently use reed sensors for control, feedback, and interlock functions in electrically demanding systems.
2. Hermetically Sealed for Harsh Industrial Conditions
Each sensor is hermetically sealed, protecting the reed contacts from contaminants that commonly degrade exposed or mechanical switching technologies.
Protection includes resistance to:
- Oils, coolants, and hydraulic fluids
- Dust, metal shavings, and weld spatter
- High humidity and condensation
- Corrosive industrial atmospheres
- Vibration, shock, and mechanical stress
This construction makes high power reed sensors especially well-suited for automation equipment, material handling systems, transportation platforms, and safety critical machinery.
3. Reliability That Supports Safety and System Integrity
In high power and safety related applications, predictability is non-negotiable.
Standex Detect sensors support system safety and uptime through:
- High insulation resistance
- Strong dielectric isolation
- Repeatable switching behavior over life
- Long cycling endurance under load
- Compatibility with global safety and compliance standards
Quality is engineered into every stage from materials and contact geometry to testing, validation, and controlled manufacturing processes.
High Power Switching Where It Matters Most
Standex Detect high power reed sensors are not general purpose switches they are application specific solutions designed for lamp loads, high inrush current devices, and harsh industrial environments.
When engineers need direct in line control, electrical robustness, and long-term reliability, these sensors deliver performance where traditional technologies fall short.
Ready to Conquer Your High Inrush Current Challenges?
Standex Electronics Detect offers a full portfolio of high power sensors for demanding industrial applications. Contact us today to discuss your application or request a quote.
